TNY280PN Off-Line Switcher IC
- Drain Voltage: -0.3 to 700V
- Drain Peak Current: 1360mA
- ENABLE Voltage: -0.3 to 9V
- ENABLE Current: 100mA
- ON State Resistance (max): 3Ω
- Output Frequency Max: 140KHz
- Package: DIP-8C
- Energy Efficient Off-Line Switcher
- Simple ON/OFF control, no loop compensation needed
- ON-time extension – extends low line regulation range/hold-up time to reduce input bulk capacitance
- Frequency jittering reduces EMI filter costs
- Pin-out simplifies heat sinking to the PCB
- SOURCE pins are electrically quiet for low EMI

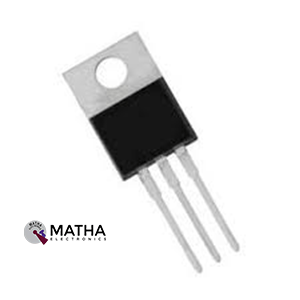

TOP204Y Off-line PWM Switch IC
- Supply Current: 1.4 mA
- Supply Voltage: 85-265VAC
- Output Voltage: 5.8 V
- Power (Watts): 50W
- Switching Frequency-Max: 100 kHz
- Package: TO-220
- Built-in start-up and current limit reduce DC losses • Low capacitance 700 V MOSFET cuts AC losses • CMOS controller/gate driver consumes only 6 mW
- 70% maximum duty cycle minimizes conduction losses.
- Low Cost Replacement for Discrete Switchers.
- Easily interfaces with both opto and primary feedback .
- Supports continuous or discontinuous mode of operation

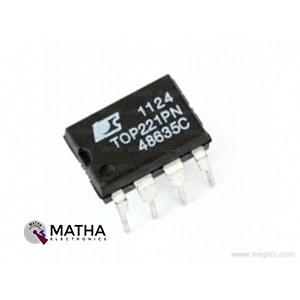

TOP221PN Off-line PWM Switch IC
- Supply current: 1.2mA
- Supply Voltage: 85-265VAC
- Output Voltage: 5.7 V
- Power (Watts): 9W
- Switching Frequency-Max: 100 kHz
- Package: DIP-8
- Lowest cost, lowest component count switcher solution
- Cost competitive with linears above 5 W
- Very low AC/DC losses – up to 90% efficiency
- Built-in Auto-restart and Current limiting
- Latching Thermal shutdown for system level protection
- Implements Flyback, Forward, Boost or Buck topology
- Works with primary or opto feedback
- Stable in discontinuous or continuous conduction mode
- Source connected tab for low EMI
- Circuit simplicity and Design Tools reduce time to market

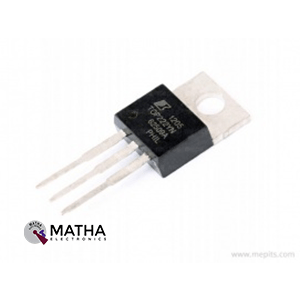

TOP222YN Off-line PWM Switch IC
- Supply Current: 1.2 mA
- Output Voltage: 5.7 V
- Power (Watts): 25W
- Output Current-Max: 0.5500 A
- Switching Frequency-Max: 110 KHz
- Lowest cost, lowest component count switcher solution.
- Cost competitive with linears above 5 W.
- Very low AC/DC losses – up to 90% efficiency.
- Built-in Auto-restart and Current limiting.
- Latching Thermal shutdown for system level protection.
- Circuit simplicity and Design Tools reduce time to market
- Package: TO-22
TOP223Y Offline PWM Switcher IC
- Supply Current: 1.2 mA
- Supply Voltage: 85-265VAC
- Output Voltage: 5.7 V
- Power (Watts): 50W
- Switching Frequency: 100 kHz
- Lowest cost, lowest component count switcher solution
- Cost competitive with linears above 5 W
- Very low AC/DC losses – up to 90% efficiency
- Built-in Auto-restart and Current limiting
- Latching Thermal shutdown for system level protection
- Implements Flyback, Forward, Boost or Buck topology
- Works with primary or opto feedback
- Stable in discontinuous or continuous conduction mode
- Source connected tab for low EMI
- Circuit simplicity and Design Tools reduce time to market
- Package: TO-220

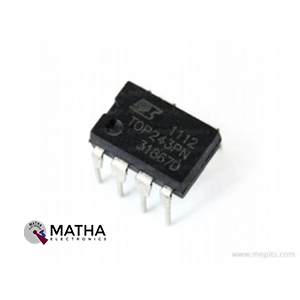

TOP243PN Off-line Switcher IC
- Supply Current: 1.6 mA
- Supply voltage range: 85-265VAC
- Power: 25W
- Output Voltage: 12 V
- Switching Frequency: 132 kHz
- Package: TO-DIP-8
- Extended power range for higher power applications
- No heatsink required up to 34 W using P/G packages.
- Features eliminate or reduce cost of external components.
- Fully integrated soft-start for minimum stress/overshoot.
- Externally programmable accurate current limit.
- Wider duty cycle for more power, smaller input capacitor .
- Separate line sense and current limit pins on Y/R/F packages
TOP243YN Off-line Switcher IC
TOP244YN Off-line Switcher IC

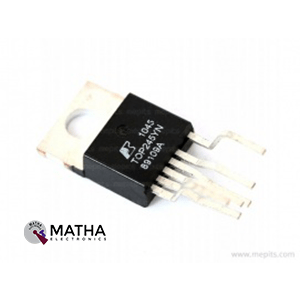

TOP245YN Off-line Switcher IC
TOP246Y Off-line Switcher IC
