74HC164 8-Bit Serial-in Parallel-Out Shift Register IC
- 8-Bit Serial-in Parallel-Out Shift Register
- Maximum clock frequency:Â 78MHz
- Propagation delay time max:Â 12ns
- Input capacitance:Â 3.5pF
- Output transition time:Â 110ns
- Package:Â DIP-14
- Wide supply voltage range from 2.0 to 6.0 V
- CMOS low power dissipation
- High noise immunity
- Typical operating frequency: 50 MHz
- Typical propagation delay: 19 ns (clock to Q)
- Wide operating supply voltage range: 2V to 6V
- Low input current: 1 µA maximum
- Low quiescent supply current: 80 µA maximum (74HC Series)
- Fanout of 10 LS-TTL loads
74HC165 8-Bit Parallel-in Serial-Out Shift Register IC

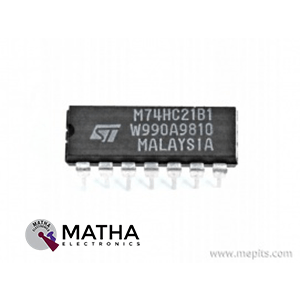

74HC21 Dual 4-Input AND Gate IC
74HC32 Quad 2-Input OR Gate IC
- Quad 2-Input OR Gate
- High-level input voltage:Â 1.2V
- Low-level input voltage:Â 0.8V
- High-level output voltage:Â 2V
- Low-level output voltage:Â 0.1V
- No. of gates:Â 4
- No. of inputs:Â 8
- No. of outputs:Â 4
- Propagation delay time:Â 90ns
- Input capacitance:Â 3.5pF
- Supply voltage range:Â 2 to 6V
- Package:Â DIP-14
74HC74 Dual D-Type Flip-Flop with Set and Reset; Positive Edge-Trigger
- Dual D-type flip-flop with set and reset; positive edge-trigger
- Number of Circuits:Â 2
- Logic Family:Â 74HC
- Input Type:Â Single-Ended
- Output Type: Differential
- Propagation: Delay Time:Â 44 ns
- Output Current:Â 5.2mA
- No. of Pins:Â 14
- Operating Temperature Range: -40°C to +85°C
- Supply Voltage Range:Â 2V to 6V
- Package:Â DIP14
74HCT166 8-Bit Parallel-inSerial-out Shift Register IC
74HCT174 High Speed CMOS Logic Hex D-Type Flip-Flop IC
- High Speed CMOS Logic Hex D-Type Flip-Flop with Reset
- Supply Voltage Range:Â 4.5V to 5.5V
- Clock Frequency:Â 25MHz
- Propagation Delay Time Max.:Â 44ns
- Output Current:Â 4mA
- No of Gates:Â 6
- High Level Input Voltage Min.:Â 2V
- Low Level Input Voltage Max.:Â 0.8V
- Package:Â DIP-16
- Buffered positive edge triggered clock
- Asynchronous common reset
- Balanced propagation delay and transition times
- Significant power reduction compared to LSTTL logic ICs
- High noise immunity

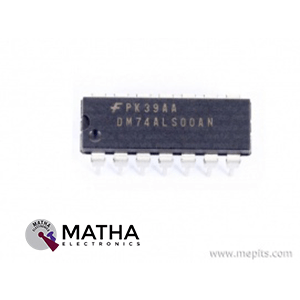

74LS00 Quadruple 2-Input Positive NAND Gate IC

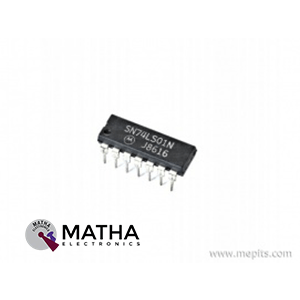

74LS01 Quad 2-Input NAND Gate IC
- Quad 2-Input NAND Gate
- High-level input voltage:Â 2V
- Low-level input voltage:Â 0.8V
- High-level output voltage:Â 5.5V
- Low-level output current:Â 8mA
- Input clamp voltage:Â -1.5V
- No. of gates:Â 4
- No. of inputs:Â 8
- No. of outputs:Â 4
- Propagation delay time:Â 32ns
- Supply voltage range:Â 4.5 to 5.5V
- Package:Â DIP-14
74LS04 Hex Inverter IC
74LS06 Hex Inverter Buffer Driver IC
74LS10 Triple 3-Input NAND Gate IC
- Triple 3-Input NAND Gate
- High-level input voltage: 2V
- Low-level input voltage: 0.8V
- High-level output current: -0.4mA
- Low-level output current: 8mA
- Input clamp voltage: -1.5V
- of gates: 3
- of inputs: 9
- of outputs: 3
- Propagation delay time: 15ns
- Supply voltage range: 4.75 to 5.25V
- Package: DIP-14
- Three Independent NAND Gates
- Fast Switching Times
- Standard TTL Switching Voltages
