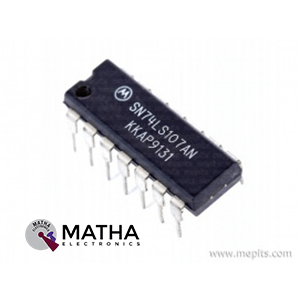

74LS107 Dual J-K Flip-Flop IC
- Dual JK Flip-Flops With Clear
- High-level input voltage:Â 2V
- Low-level input voltage:Â 0.8V
- High-level output current:Â -0.4mA
- Low-level output current:Â 8mA
- Input clamp voltage:Â -1.5V
- Maximum clock frequency:Â 45MHz
- Propagation delay time:Â 20ns
- Supply voltage range:Â 4.75 to 5.25V
- Package:Â DIP-14
74LS112 Dual J-K Negative Edge Triggered Flip-Flop IC
- Dual JK Negative Edge Triggered Flip-Flops With Preset and Clear
- High-level input voltage:Â 2V
- Low-level input voltage:Â 0.8V
- High-level output current:Â -0.4mA
- Low-level output current:Â 8mA
- Maximum clock frequency:Â 45MHz
- Propagation delay time:Â 20ns
- Supply voltage range:Â 4.75 to 5.25V
- Package:Â DIP-16

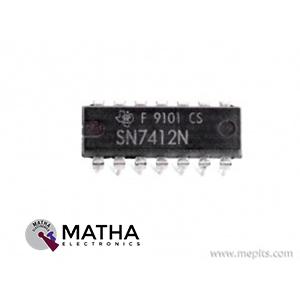

74LS12 Triple 3-Input Positive NAND Gate IC

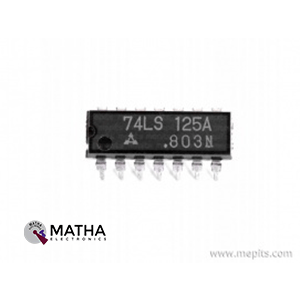

74LS125 Quadruple Bus Buffer IC

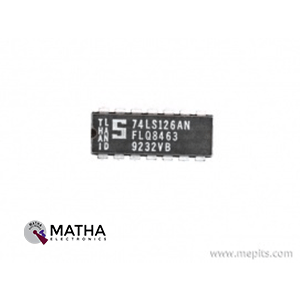

74LS126 Quad Tri-State Buffer IC

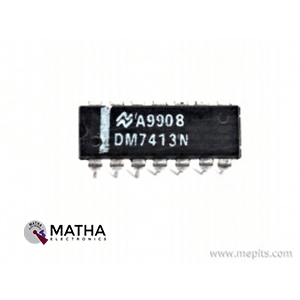

74LS13 Dual 4-Input Schmitt Trigger IC
- 4-Input NAND gate Schmitt Trigger – Hex Inverter
- Operating Voltage: 5V
- Low Level Hysteresis voltage: 0.25V
- High Level Hysteresis voltage: 3.4V
- Output current High: -0.4mA
- Output current Low: 8.0mA
- Hysteresis voltage: 0.8V typically
- Typical Rise Time: 12nS
- Typical Fall Time: 12nS
- Available in 14-pin PDIP, GDIP, PDSO packages

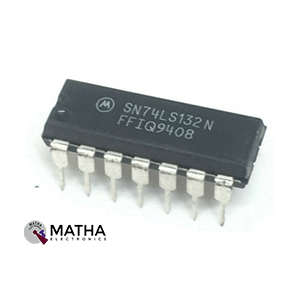

74LS132 Quadruple 2-Input Positive NAND Schmitt Trigger IC

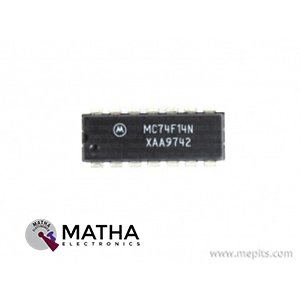

74LS14 Hex Inverter IC
- Hex Inverter
- High-level input voltage:Â 2V
- Low-level input voltage:Â 0.8V
- High-level output current:Â -1mA
- Low-level output current:Â 20mA
- No. of gates:Â 6
- No. of inputs:Â 6
- No. of outputs:Â 6
- Propagation Delay:Â 7ns
- Supply voltage range:Â 4.5 to 5.5V
- Package:Â DIP-14
- Six Independent INVERT Gates
- Fast Switching Times
- Operating Temperature up to 70°C
- Standard TTL Switching Voltages

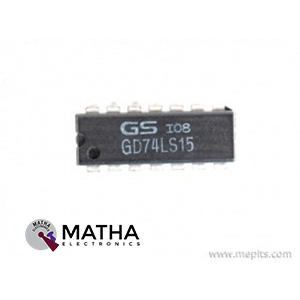

74LS15 Triple 3-Input AND Gate IC
74LS154 4 Line to 16 Line Decoder Demultiplexer IC
- 4 Line to 16 Line Decoder/Demultiplexer
- High-level input voltage:Â 2V
- Low-level input voltage:Â 0.8V
- High-level output current:Â -0.4mA
- Low-level output current:Â 8mA
- Input clamp voltage:Â -1.5V
- Propagation delay time max:Â 35ns
- Typical power dissipation:Â 45mW
- Supply voltage range:Â 4.75 to 5.25V
- Package:Â DIP-24
74LS160N Synchronous Presettable BCD Decade Counter IC
- Synchronous Presettable BCD Decade Counter
- High-level input voltage:Â 2V
- Low-level input voltage:Â 0.8V
- High-level output current:Â -0.4mA
- Low-level output current:Â 8mA
- Input clamp voltage:Â -1.5V
- Maximum clock frequency:Â 25MHz
- Propagation delay time max:Â 28ns
- Supply voltage range:Â 4.75 to 5.25V
- Package:Â DIP-16
74LS161 4-Bit Binary Counter IC
- 4-Bit Binary Counter
- Supply Voltage Range:Â 4.75V to 5.25V
- Supply Current Max.:Â 32mA
- Clock Frequency Max.:Â 32MHz
- HIGH Level Input Voltage Min.:Â 2V
- LOW Level Input Voltage Max.:Â 0.8V
- HIGH Level Output Voltage Min.:Â 2.7V
- LOW Level Output Voltage Max.:Â 0.5V
- High level Output Current Max.:Â -0.4mA
- Low level Output Current Max.:Â 8mA
- Input Clamp Voltage Max.:Â -1.5V
- Propagation Delay Time Max.:Â 35ns
- Package:Â DIP-16
