74121 Monostable Multivibrator with Schmitt-Trigger Input
LM7912C Negative Voltage Regulator
NE564 Phase Locked Loop IC
LM7808 8V Positive Voltage Regulator IC
- Output current in excess of 1A
- Internal thermal overload protection
- No external components required
- Output transistor safe area protection
- Internal short circuit current limit
- Available in the aluminum TO-3 package
- Output Voltage: 8V
- Line Regulation (max): 160mV
- Load Regulation (max): 160mV
- Dropout Voltage: 2V
- Output Resistance: 16mΩ
IC PT2314 SMD
- 4 stereo inputs with gain selection, range from 0dB to +11.25dB in 3.75dB/step
- Master volume from 0 dB to -78.75dB in 1.25dB/step
- Speaker attenuator for balance, range from 0dB to -38.75dB in 1.25dB/step
- Each channel output can be muted individually.
- Low frequency loudness compensation
- Bass and Treble control, range from -14dB to +14dB in 2dB/step
- Wide operation range (VDD=4V to 10V)
- Low harmonic distortion, low noise
- Improved and replace PT2314 and PT2314A

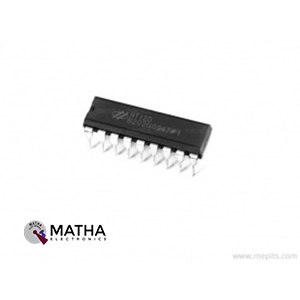

HT12D Decoder IC
PIC16F877A Microcontroller IC
- Maximum CPU Frequency: 20 MHz
- Architecture: 8 bit
- Program Memory (Flash): 14 kB
- RAM: 368 byte
- Internal Oscillator: No
- ADC: 1 (8 channels)
- of Pins: 40
- Voltage: 2V - 5.5V
- 100,000 erase/write cycle Enhanced Flash program memory typical
- 1,000,000 erase/write cycle Data EEPROM memory typical
- Data EEPROM Retention > 40 years
- Self-reprogrammable under software control
- In-Circuit Serial Programming™ (ICSP™) via two pins
- Single-supply 5V In-Circuit Serial Programming
- Watchdog Timer (WDT) with its own on-chip RC oscillator for reliable operation
- Programmable code protection
- Power saving Sleep mode
- Selectable oscillator options
- In-Circuit Debug (ICD) via two pins
- Low-power, high-speed Flash/EEPROM technology
- Fully static design
- Wide operating voltage range (2.0V to 5.5V)
- Commercial and Industrial temperature ranges
- Low-power consumption
CD4066 Quad Single-Pole Single-Throw Analog Switch IC
TL081 JFET-Input Operational Amplifier IC
27C128 128K (16K x 8) CMOS EPROM IC
- 128K (16K x 8) CMOS EPROM
- Access Time: 170ns
- Active Current: 20mA
- Standby Current: 100µA
- Package: DIP-28
- High Level Output Voltage: 2.4V
- Low Level Output Voltage: 0.45V
- Output Leakage Current: 10µA
- Read Current: 100µA
- Input Leakage Current Max: 10µA
- Vcc Current, program & verify: 20mA
- Vpp Current, program: 25mA
- Address Set-Up Time: 2µs
- Data Set-Up Time: 2µs

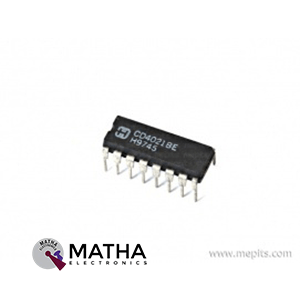

CD4021BE CMOS 8-Stage Static Shift Register IC
- CMOS 8-Stage Static Shift Register
- Counting Sequence: Serial/Parallel to Parallel
- Number of Circuits: 1
- Logic Family: CD4000
- Number of Input Lines: 9
- Number of Output Lines: 3
- Propagation Delay Time: 320 ns, 160 ns, 120 ns
- Operating Temperature Range: -55°C to +125°C
- Supply Voltage Range: 3V to 18V
- Package: PDIP-16
IC PT2322
- 6-Channel Audio Processor IC
- Very Low Power Consumption (DC=9V)
- I2C Bus Control
- 6-Channel Individual Input
- 6-Channel Master Volume Control: 0 to -79 dB (1 dB/step)
- 6-Channel Individual Output TRIM Volume Control: 0 to -15 dB (1dB/step)
- 3-Band Tone Control (Treble, Middle, Bass): + 14dB , 2dB/step
- Mute Function
- 3D Effect Function
- Tone Defeat Function
- Low Noise
- High Channel Separation
- Low Harmonic Distortion
- Least External Components
- Package: SO-28
