PT2323 6-Channel Audio Selector IC

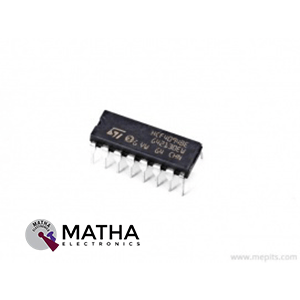

CD4094 8 Stage Shift And Store Bus Register IC
- 8 Stage Shift And Store Bus Register With 3 Stage Outputs
- Supply Voltage Range:Â 3 to 20V
- Input Current: ±10mA
- Power Dissipation: 200mW
- Quiescent Current Max.: 100µA
- Low level Output Voltage: 0.05V
- High level Output Voltage Min.: 4.95V
- Low level Input Voltage Max.: 1.5V
- High level Input Voltage Min.: 3.5V
- Propagation Delay Time Max.: 600ns
- Package: DIP-16
LNK564PN Off-line Switcher IC
LM350T 3A Positive Adjustable Voltage Regulator IC
CD4093 Quad 2-Input NAND Schmitt Trigger IC
LM2901 Quad Comparator IC
LM338T 5-Amp Adjustable Regulator IC
IR2111 Half-Bridge Driver IC
- Half-Bridge Driver
- High Side Floating Supply Voltage: 625V
- High Level Output Voltage Max.:100mV
- Low Level Output Voltage Max.: 100mV
- Logic 1 Input Bias Current Max.: 40µA
- Logic 0 Input Bias Current Max.: 1µA
- Total Power Dissipation:1W
- Rise Time Max. : 130ns
- Fall Time Max.: 65ns
- Floating channel designed for bootstrap operation
- Fully operational to +600 V
- Tolerant to negative transient voltage
- dV/dt immune
- Gate drive supply range from 10 to 20 V
- Undervoltage lockout for both channels
- CMOS Schmitt-triggered inputs with pull-down
- Matched propagation delay for both channels
- Internally set deadtime
- High side output in phase with input
- Package: DIP-8
TOP261YN Off-line Switcher IC
- Supply Voltage: -0.3-9V
- Output Voltage: 700 V
- Power: 333W
- Switching Frequency-Max: 132 kHz
- Package: TO-220-7C
- Lowest cost, lowest component count switcher solution
- Stable in discontinuous or continuous conduction mode
- Source connected tab for low EMI
- Circuit simplicity and Design Tools reduce time to market
5L0380 Power Switch IC
- Power Switch
- Drain Voltage: 650V
- Drain Current: 12A
- Supply Voltage: 30V
- Supply Current: 12mA
- Precision fixed operating frequency (100/67/50kHz)
- Low start-up current (typ. 100µA)
- Pulse by pulse current limiting
- Over-current protection
- Overvoltage protection (Min. 25V)
- Internal thermal shutdown function
- Under voltage lockout
- Internal high voltage sense FET
- Auto-restart mode
LM747 Dual Operational Amplifier IC
- Dual General-Purpose Operational Amplifier
- Differential Input Voltage: ±30V
- Input Offset Voltage Max:Â 6mV
- Input Offset Current Max:Â 200nA
- Input Bias Current Max:Â 500nA
- Common-Mode Rejection Ratio:Â 90dB
- Max. Power Dissipation(each amplifier):Â 85mW
- Rise Time: 0.3µs
- No frequency compensation required
- Short-circuit protection
- Â Wide common-mode and differential voltage ranges
- Low power consumption
- No latch-up
- Â Balanced offset null
- Package: DIP-14
