TB6612FNG Dual Motor Driver Module 1A for Arduino/Other Microcontroller
- Driver Model: TB6612FNG
- Operating voltage: 2.7 V to 5.5 V
- Limited Maximum Voltage: 15V max
- Output current: 1.2A
- Maximum Current: 3.2A (peak)
- Number of Channels: 1
- Standby control to save power
- CW/CCW/short break/stop motor control modes
- Built-in thermal shutdown circuit and a low voltage detecting circuit
- All pins of the TB6612FNG broken out to 0.1 spaced pins
- Filtering capacitors on both supply lines
- Dimensions: 30 x 20 x 10mm
- Weight: 22 gm
Towerpro MG90S Mini Digital 180 Degree Servo
- Model: MG90S
- Operating voltage: 4.8V~ 6.6V
- Servo Plug: JR
- Stall torque @4.8V : 1.8kg-cm
- Stall torque @6.6V : 2.2kg-cm
- Modulation: Analog
- Dimensions: 23.1*12.2*29.0 mm
- Gear Type: Metal
- Rotation/Support: Dual Bearings
- Rotational Range: 180°
- Pulse Cycle: 20 ms
- Pulse Width: 400-2400 µs
- High resolution
- Accurate positioning
- Fast control response
- Constant torque throughout the servo travel range
- Excellent holding power
- Weight: 13 gm
TowerPro MG996R 360 Deg Rotation Digital High Torque Servo Motor
- Gear Type: Metal gear
- Servo Plug: JR (Fits JR and Futaba)
- Weight: 55g
- Dimension: 40.7×19.7×42.9mm
- Stall torque: 9.4kg/cm (4.8v); 11kg/cm (6.0v)
- Operating speed: 0.19sec/60degree (4.8v); 0.15sec/60degree (6.0v)
- Operating voltage: 4.8 ~ 6.6V
- Gear Type: Metal gear
- Dead band width: 1us
- Wire length: 32cm
- Servo arms & screws included, and fit with Futaba servo arm
- It’s universal “S” type connector that fits most receivers, including Futaba, JR, Hitec ,GWS, Cirrus, Blue Bird, Blue Arrow, Corona, Berg, Spektrum.
- CE & RoHS approved
TowerPro SG-5010(180° Rotation)
TowerPro SG90 Mini Servo – 180 degree Rotation
-
- Model: SG90
- Operating voltage: 3.0V- 7.2V
- Servo Plug: JR
- Stall torque @4.8V : 1.2kg-cm
- Stall torque @6.6V : 1.6kg-cm
- Torque: 2.5kg/cm
- Operating speed is 0.1s/60°
- Gear Type: Plastic
- Rotation : 0°-180°
- High resolution
- Accurate positioning
- Fast control response
- Constant torque throughout the servo travel range
- Excellent holding power
- Weight: 9 gm

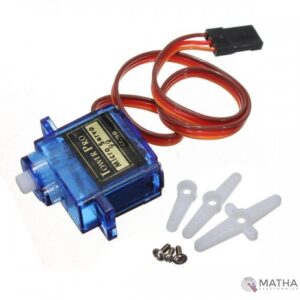

TowerPro SG92R Mini Micro Servo 9g 2.5kg
- Operating Voltage: 4.8V to 6.0V
- Operating Temperature Range: -10 to +60 Degree C
- Operating Speed (4.8V): 0.12sec/60 degrees at no load
- Operating Speed (6.0V): 0.10sec/60 degrees at no load
- Stall Torque (4.8V): 1.8kg/cm
- Stall Torque (6.0V): 2.4kg/cm
- 360 Modifiable: Yes
- Bearing Type: Ball Bearing
- Gear Type: Nylon Gears
- Connector Wire Length: 12"
- Pulse Width: 500-2400 µs
- Rotation Angle: 180 degree
- Dimension: 21.5 x 11.8 x 22.7mm
- Weight: 9g

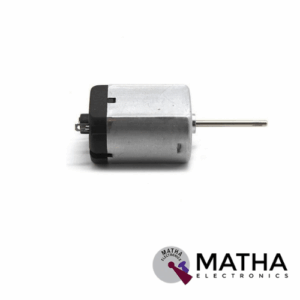

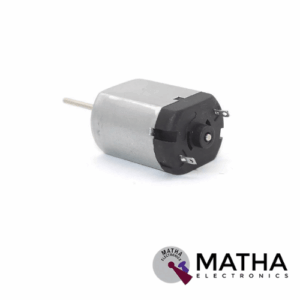

Toy Motor Long Shaft
- DC 12V
- 13000 rpm motor
- long shaft high speed motor
- Suitable for toy car and other toys.
- Good heat dissipation with cooling fan
- Voltage: 12V.
- No Load Current: 0.9A
- No Load Rotate Speed: 13000r/ min. Shaft Length: 20mm/ 0.79in
- Shaft Diameter: 3mm/ 0.12in. Size: 92mm x 37mm x 37mm/ 3.62in x 1.46in x 1.46in. Net Weight: 230g/ 8.11oz. Color: Silver

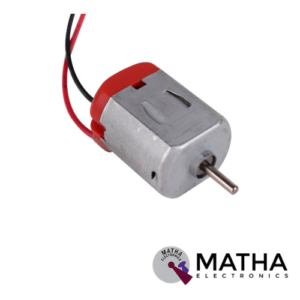

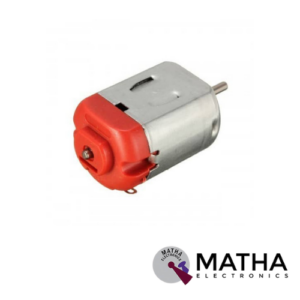

Toy Motor Small
Toy Motor Small With Leaf
ULN2003 Driver
- Contains 7 high-voltage and high current Darlington pairs
- Each pair is rated for 50V and 500mA
- Input pins can be triggered by +5V
- All seven Output pins can be connected to gather to drive loads up to (7×500mA) ~3.5A.
- Can be directly controlled by logic devices like Digital Gates PIC etc
- Available in 16-pin DIP, TSSOP, SOIC packages
- Dimensions: 32 x 18 x 11mm (LxWxH)
- Weight: 3 gm
