STEPPER MOTOR NEMA 23 7.2KG

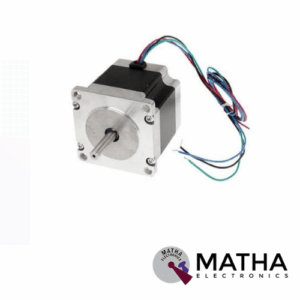

Stepper Motor NEMA 23 28 kg-cm Hybrid Bipolar
• Phase - 2 phase Bipolar
• Rated Voltage:4.8V
• Current/ phase: 3A
• Inductance/ phase: 7.5 mH (20% variance)
• Resistance/ phase: 1.6 Ohms (10% variance)
• Holding Torque: 28 kg-cm
• Number of Leads: 4
• Step Angle: 1.8°
• Step Angle Accuracy: ±5% (full step, no load)
• Resistance Accuracy: ±10%
• Inductance Accuracy: ±20%
• Frame Size: 85x85mm
• Shaft Length: 32mm
• Shaft Diameter: 12mm
• They are high torque stepper motors.
• Input pulse decides the rotation angle of the motor.
• High accuracy of around 3 to 5% a step.
• Provides good starting, stopping and reversing
• Supreme finish, Smooth surface, Long lasting life
• Can operate in an open loop control system
• High reliability
Stepper Motor NEMA 23 23 kg-cm Hybrid Bipolar
- Phase - 2 phase Bipolar
- Rated Voltage:2.55V
- Current/ phase: 3.5A
- Inductance/ phase: 2.8 mH (20% variance)
- Resistance/ phase: 0.73 Ohms (10% variance)
- Holding Torque: 23 kg-cm
- Number of Leads: 4
- Step Angle: 1.8°
- Step Angle Accuracy: ±5% (full step, no load)
- Resistance Accuracy: ±10%
- Inductance Accuracy: ±20%
- Frame Size: 85x85mm
- Shaft Length: 32mm
- Shaft Diameter: 12mm
- They are high torque stepper motors.
- Input pulse decides the rotation angle of the motor.
- High accuracy of around 3 to 5% a step.
- Provides good starting, stopping and reversing
- Supreme finish, Smooth surface, Long lasting life
- Can operate in an open loop control system
- High reliability
XB NEMA 34 (86mm-S) Coupling 12.7x8mm
- Material: Aluminum alloy hubs and elastomeric polyurethane spider.
- Product Type: Clamp-style jaw coupling without keyway.
- Large Bore Diameter: 12.7mm
- Small bore diameter:8mm
- Number of Screws: 2 each.
- Angular Misalignment: +/-1°.
- Parallel Misalignment: +0.20mm/-0.20mm .
- Maximum Rotational Speed: 6500RPM.
- Suitable for Nema 23 Stepper Motor or for any motor/rod having an 12.75mm diameter
- Widely used in motors, stepper motors, encoders, and servo machines
XB NEMA 34 (86mm) Coupling 12.7×12.7mm
- Material: Aluminum alloy hubs and elastomeric polyurethane spider.
- Product Type: Clamp-style jaw coupling without keyway.
- Bore Diameter: 12.7*12.7mm
- Number of Screws: 2 each.
- Angular Misalignment: +/-1°.
- Parallel Misalignment: +0.20mm/-0.20mm .
- Maximum Rotational Speed: 6500RPM.
- Suitable for Nema 23 Stepper Motor or for any motor/rod having an 12.75mm diameter
- Widely used in motors, stepper motors, encoders, and servo machines.
XB NEMA 23 (57mm) Coupling 6.35x8mm
- Material: Aluminum alloy hubs and elastomeric polyurethane spider.
- Product Type: Clamp-style jaw coupling without keyway.
- Large Bore Diameter: 8mm
- Small Bore Diameter: 6.35mm
- Number of Screws: 2 each.
- Angular Misalignment: +/-1°.
- Parallel Misalignment: +0.20mm/-0.20mm .
- Maximum Rotational Speed: 6500RPM.
- Suitable for Nema 23 Stepper Motor or for any motor/rod having an 6.35mm diameter
- Widely used in motors, stepper motors, encoders, and servo machines.
RB NEMA 23 (57mm) Coupling 6.35x8mm
XB NEMA 23 (57mm) Coupling 8×9.5mm
- Material: Aluminum alloy hubs and elastomeric polyurethane spider.
- Product Type: Clamp-style jaw coupling without keyway.
- Large Bore Diameter: 9.5mm
- Small Bore Diameter: 8mm
- Number of Screws: 2 each.
- Angular Misalignment: +/-1°.
- Parallel Misalignment: +0.20mm/-0.20mm .
- Maximum Rotational Speed: 6500RPM.
- Suitable for Nema 23 Stepper Motor or for any motor/rod
- Widely used in motors, stepper motors, encoders, and servo machines.
XB NEMA 23 (57mm) Coupling 8x8mm
- Material: Aluminum alloy hubs and elastomeric polyurethane spider.
- Product Type: Clamp-style jaw coupling without keyway.
- Dimensions: bore size: 8mm x 8mm.
- Number of Screws: 2 each.
- Angular Misalignment: +/-1°.
- Parallel Misalignment: +0.20mm/-0.20mm .
- Maximum Rotational Speed: 6500RPM.
- Suitable for Nema 23 Stepper Motor or for any motor/rod having an 8mm diameter
- Widely used in motors, stepper motors, encoders, and servo machines.
RB NEMA 17 (42mm) Coupling 5×6.35mm
DRV8825 Stepper Motor
- Operating voltage: 8.2V to 45V
- Continuous current per phase: 1.5 Amp
- Maximum current per phase: 2.2 Amp
- Minimum logic voltage: 2.5V
- Maximum logic voltage: 5.25V
- Six different step resolutions: full-step, half-step, 1/4-step, 1/8-step, 1/16-step, and 1/32-step
- Compatible with 3V3 and 5V microcontrollers
- Our Board comes with 0.1 Ohm Sensor resistors
- The Correct current decay mode (fast decay or slow decay) selected by chopping control
- Over-temperature thermal shutdown, under-voltage lockout, and crossover-current protection
- Short-to-ground and shorted-load protection
- 4-layer, 2 oz copper PCB for improved heat dissipation
- Exposed solderable ground pad below the driver IC on the bottom of the PCB
- Dimensions : 15 x 20 mm.
- Weight: 4 gm.
