74HC32 Quad 2-Input OR Gate IC
- Quad 2-Input OR Gate
- High-level input voltage:Â 1.2V
- Low-level input voltage:Â 0.8V
- High-level output voltage:Â 2V
- Low-level output voltage:Â 0.1V
- No. of gates:Â 4
- No. of inputs:Â 8
- No. of outputs:Â 4
- Propagation delay time:Â 90ns
- Input capacitance:Â 3.5pF
- Supply voltage range:Â 2 to 6V
- Package:Â DIP-14
74LS10 Triple 3-Input NAND Gate IC
- Triple 3-Input NAND Gate
- High-level input voltage: 2V
- Low-level input voltage: 0.8V
- High-level output current: -0.4mA
- Low-level output current: 8mA
- Input clamp voltage: -1.5V
- of gates: 3
- of inputs: 9
- of outputs: 3
- Propagation delay time: 15ns
- Supply voltage range: 4.75 to 5.25V
- Package: DIP-14
- Three Independent NAND Gates
- Fast Switching Times
- Standard TTL Switching Voltages
74LS14 Hex Inverter IC
- Hex Inverter
- High-level input voltage:Â 2V
- Low-level input voltage:Â 0.8V
- High-level output current:Â -1mA
- Low-level output current:Â 20mA
- No. of gates:Â 6
- No. of inputs:Â 6
- No. of outputs:Â 6
- Propagation Delay:Â 7ns
- Supply voltage range:Â 4.5 to 5.5V
- Package:Â DIP-14
- Six Independent INVERT Gates
- Fast Switching Times
- Operating Temperature up to 70°C
- Standard TTL Switching Voltages
7815 15V Positive Voltage Regulator IC
- Output Voltage:Â 15V
- Line Regulation (max):Â 300mV
- Load Regulation (max): 300mV
- Dropout Voltage:Â 2V
- Output Resistance:19mΩ
- Output current in excess of 1A
- Â Internal thermal overload protection
- Â No external components required
- Â Output transistor safe area protection
- Â Internal short circuit current limit
- Available in the aluminum TO-3 package
- Thermal Overload Protection
- Short Circuit Protection
- Output Transistor Safe Operating Area Protection
74197N 50MHz Presettable Decade or Binary Counter IC
- 50MHz Presettable Decade or Binary Counter
- High-level output voltage:Â 3.4V
- Low-level output voltage:Â 0.2V
- High-level output current: -800µA
- Low-level output current:Â 16mA
- Input clamp voltage:Â -1.5V
- Maximum clock frequency:Â 50MHz
- Propagation delay time max:Â 63ns
- Supply voltage range:Â 4.75 to 5.25V
- Package:Â DIP-14
CD4022 Octal Counter IC
- Octal Counter
- Supply Voltage Range:Â -0.5 to +18.0V
- Input or Output Current: ±10mA
- Power Dissipation:Â 500mW
- Low level Output Voltage Max.:Â 0.05V
- High level Output Voltage Min.:Â 4.95V
- Low level Input Voltage.:Â 2.25V
- High level Input Voltage:Â 2.75V
- Propagation Delay Time Max.:Â 1000ns
- Maximum Clock Frequency:Â 6.7MHz
- Package:Â DIP-16
74LS112 Dual J-K Negative Edge Triggered Flip-Flop IC
- Dual JK Negative Edge Triggered Flip-Flops With Preset and Clear
- High-level input voltage:Â 2V
- Low-level input voltage:Â 0.8V
- High-level output current:Â -0.4mA
- Low-level output current:Â 8mA
- Maximum clock frequency:Â 45MHz
- Propagation delay time:Â 20ns
- Supply voltage range:Â 4.75 to 5.25V
- Package:Â DIP-16
74LS373 Octal D-Type Transparent Latch IC
- Octal D-Type Transparent Latch
- High-level input voltage:Â 2V
- Low-level input voltage:Â 0.8V
- High-level output voltage:Â 5.5V
- High-level output current:Â -6.5mA
- Input clamp voltage:Â -1.2V
- Propagation delay time:Â 18ns
- Supply voltage range:Â 4.75 to 5.25V
- Package:Â DIP-20
- Eight Latches in a Single Package
- 3-State Outputs for Bus Interfacing
- Hysteresis on Latch Enable
- Edge-Triggered D-Type Inputs
- Buffered Positive Edge-Triggered Clock
- Hysteresis on Clock Input to Improve Noise Margin
- Input Clamp Diodes Limit High-Speed Termination Effects

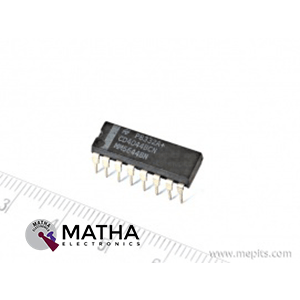

CD4044 CMOS Quad 3-State RS Latch IC
- CMOS Quad 3-State RS Latch
- Number of Circuits:Â 1
- Logic Type:Â CMOS
- Logic Family:Â CD4000
- Polarity:Â Non-Inverting
- Number of Input Lines/Output Lines:Â 8/4
- High Level Output Current:Â - 4.2 mA
- Propagation Delay Time:Â 350 ns at 5 V, 175 ns at 10 V, 120 ns at 15 V
- Supply Voltage Range:Â 3 to 15V
- Operating Temperature Range:Â - 55 C to + 125 C
- Package:Â PDIP 16
7412N Triple 3-Input Positive NAND Gate IC
- Triple 3-Input Positive NAND Gates with Open-Collector Outputs
- High-level output voltage:Â 5.5V
- Low-level output voltage:Â 0.2V
- High-level output current:Â 0.25mA
- Low-level output current:Â 16mA
- Input clamp voltage:Â -1.5V
- No. of gates:Â 3
- No. of inputs:Â 9
- No. of outputs:Â 3
- Propagation delay time:Â 45ns
- Supply voltage range:Â 4.75 to 5.25V
- Package:Â DIP-14
