74HC139 Dual 2-Line to 4-Line Decoder Demultiplexer IC
74LS257 Quadruple 2-Line to 1-Line Data Selector or Multiplexer IC
- Quadruple 2-Line to 1-Line Data Selector/Multiplexer
- Logic Family:Â LS
- No. of Bits:Â 4
- Propagation Delay Time:Â 15 ns at 5 V
- No. of Lines In/Out:Â 2 / 1
- Output Current Max:Â 24mA
- Power Dissipation:Â 200 mW
- No. of Channels:Â 1
- No. of Pins:Â 16
- Operating Temperature Range: 0°C to +70°C
- Supply Voltage Range:Â 4.75V to 5.25V
- Package:Â DIP-16
LM317 1.2V to 37V Adjustable Voltage Regulator IC
74LS258 Quadruple 2-Line to 1-Line Data Selector or Multiplexer IC
CD4028 BCD to Decimal Decoder Binary to Octal Decoder IC
- BCD to Decimal Decoder Binary to Octal Decoder
- Supply Voltage Range:Â 3 to 20V
- Input or Output Current: ±10mA
- Power Dissipation:Â 500mW
- Low level Output Voltage Max.:Â 0.05V
- High level Output Voltage Min.:Â 4.95V
- Low level Input Voltage:Â 2.25V
- High level Input Voltage:Â 2.75V
- Propagation Delay Time Max.:Â 600ns
- Package:Â DIP-16
CD4053 Triple 2 Channel Analog Multiplexer or Demultiplexer IC
74HC164 8-Bit Serial-in Parallel-Out Shift Register IC
- 8-Bit Serial-in Parallel-Out Shift Register
- Maximum clock frequency:Â 78MHz
- Propagation delay time max:Â 12ns
- Input capacitance:Â 3.5pF
- Output transition time:Â 110ns
- Package:Â DIP-14
- Wide supply voltage range from 2.0 to 6.0 V
- CMOS low power dissipation
- High noise immunity
- Typical operating frequency: 50 MHz
- Typical propagation delay: 19 ns (clock to Q)
- Wide operating supply voltage range: 2V to 6V
- Low input current: 1 µA maximum
- Low quiescent supply current: 80 µA maximum (74HC Series)
- Fanout of 10 LS-TTL loads
74HCT166 8-Bit Parallel-inSerial-out Shift Register IC
74LS164 8-Bit Parallel-Out Serial-in Shift Register IC
- 8-Bit Parallel-Out Serial-in Shift Register
- High-level input voltage:Â 2V
- Low-level input voltage:Â 0.8V
- High-level output current: -400µA
- Low-level output current:Â 8mA
- Input clamp voltage:Â -1.5V
- Maximum clock frequency:Â 25MHz
- Propagation delay time max:Â 36ns
- Power dissipation:Â 400mW
- Supply voltage range:Â 4.75 to 5.25V
- Package:Â DIP-14
74LS166 Parallel Load 8-Bit Shift Register IC
- Parallel Load 8-Bit Shift Register
- High-level input voltage:Â 2V
- Low-level input voltage:Â 0.8V
- High-level output current:Â -0.4mA
- Low-level output current:Â 8mA
- Input clamp voltage:Â -1.5V
- Maximum clock frequency:Â 35MHz
- Propagation delay time max:Â 30ns
- Supply voltage range:Â 4.75 to 5.25V
- Package:Â DIP-16
CD4021BE CMOS 8-Stage Static Shift Register IC
- CMOS 8-Stage Static Shift Register
- Counting Sequence:Â Serial/Parallel to Parallel
- Number of Circuits:Â 1
- Logic Family:Â CD4000
- Number of Input Lines:Â 9
- Number of Output Lines:Â 3
- Propagation Delay Time:Â 320 ns, 160 ns, 120 ns
- Operating Temperature Range: -55°C to +125°C
- Supply Voltage Range:Â 3V to 18V
- Package:Â PDIP-16

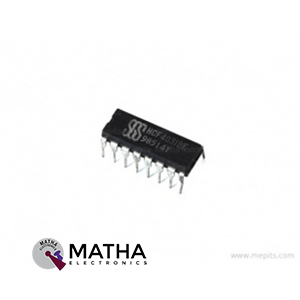

CD4031 64 Stage Static Shift Register IC
- 64 Stage Static Shift Register
- Supply Voltage Range:Â 3 to +15V
- Input Current: ±10mA
- Power Dissipation:Â 200mW
- Low level Output Voltage Max.:Â 0.05V
- High level Output Voltage Min.:Â 4.95V
- Low level Input Voltage Max. :Â 1.5V
- High level Input Voltage Min. :Â 3.5V
- Maximum Clock Frequency:Â 12MHz
- Propagation Delay Time Max.:Â 500ns
- Package:Â DIP-16
