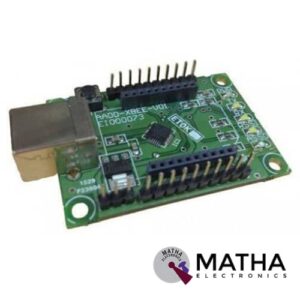

XBee Base Board USB Output
- Compatible with all ZigBee modules (Series 1 and Series 2.5, standard and Pro)
- Built-in 3V3 Voltage regulator
- 3V and 5V dual power output
- 3V and 5V IO compatible
- Status LEDs ( RX, TX, RSSI, Power)
- Zig Bee Pins available at 2.54 mm berg strip
- USB Powered.
- Small footprint.
- All XBee pins are broken out.
- Reset button.
- USB 2.0 protocol
- BitBang mode ready
- Easily connected to a PC via mini USB cable
- XBee-setting support software X-CTU
XBee Module S2C XB24CZ7WIT-004
- Protocol: ZigBee®
- Transceiver chipset: Silicon Labs EM357 SoC
- RF Standard: 802.15.4
- Frequency (ISM Band): 2.4GHz
- Digital I/O: 15
- ADC Channels: (4) 10-bit ADC inputs
- Data Rate: RF 250 Kbps, Serial up to 1 Mbps
- Range: Indoor 200 ft (60 m), Outdoor (LOS) 4000 ft (1200 m)
- Transmit Power: 3.1 mW (+5 dBm)
- Channels: 16 channels
- Encryption: 128-bit AES
- Voltage requirements: 2.1 to 3.6 VDC
- Current requirements: ~33 mA @ 3.3VDC (transmit), ~28 mA @ 3.3VDC (receive), <1 uA @25ºC (sleep)
- Migratable to Digi Mesh and ZigBee PRO protocols
- Configuration Method: API or AT commands, local or over-the-air (OTA)
- Communication: CMOS UART / SPI
- Dimensions: 27.61 x 24.38 x 4.06 mm
- Operating temperature range: -40 to +85 °C
- Integrated, Wire Antenna
- Interoperable with other ZigBee-compliant devices
- Programmable versions with on-board microprocessor enable custom ZigBee application development
- Supports binding and multicasting for easy integration into a home automation platform
- Through-hole form factor enables flexible design

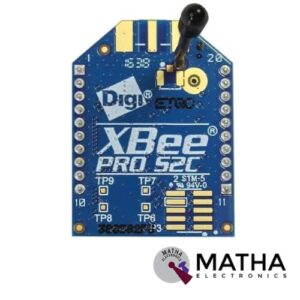

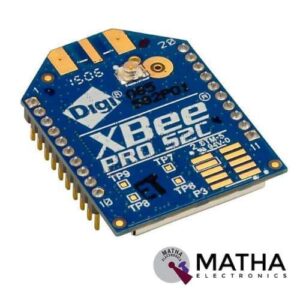

Xbee Module S2C XBP24CZ7UIT-004
- Protocol: ZigBee
- Modulation: DSSS
- Frequency: 2.4GHz
- Data Rate: 1Mbps
- Power: Output 18dBm
- Sensitivity: 101dBm
- Serial Interfaces: SPI, UART
- Antenna Type: Antenna Not Included, U.FL
- Transceiver chipset: Silicon Labs EM357 SoC
- Operating voltage: 2.7V-3.6V
- Current Receiving: 31mA ~ 45mA
- Current Transmitting: 120mA
- Mounting Type Through Hole
- Operating Temperature: -40°C ~ 85°C

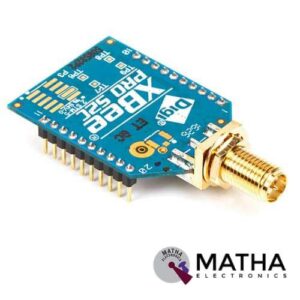

Xbee Pro S2C Module XBP24CZ7WIT-004
- Operating voltage: 2.7V-3.6V
- Max data rate: 250kbps
- 63mW output (+17dBm)
- Range: 1 mile (1600m)
- ADC Channels: 6 10-bit ADC input pins
- Digital I/O: 8
- 128-bit encryption
- Transmit Current: 120mA at 3.3VDC
- Receive current: 31mA at 3.3VDC
- Data Rate: RF 250Kbps, serial up to 1Mbps
- Indoor/urban range up to 300ft (90m)
- outdoor/RF line of sight range up to 2miles (3200m)
- Transmit power is 63mW (+18dBm)
- Receiver sensitivity is -101dBm
- Local or over-air configuration
- AT or API command set
- External Antenna Required
- Firmware upgrades via UART, SPI or over the air (OTA)
- ISM 2.4GHz frequency band, DSSS (direct sequence spread spectrum) interference immunity
- Dimension: 2.438cm x 3.294cm
Zigbee CC2500 RS232
- RS-232 direct interface
- TTL support
- RSSI value between two modules can be obtained
- Separate LED for RX, TX, and power
- 4-bit channel selection
- Programmable output power
- Automatic packet processing
- 6 data pipes for 1:6 star networks
- 4-pin SPI interface with maximum 8 MHz clock rate 7
- 20-pin 4x4mm QFN package
