16 CHANNEL 12V RELAY
- 16 channel 12V relay board
- Operating voltage: 12V
- Supply current: 0.2 A
- Relay contact current capacity of 10A @250 V AC/10A@ 30V AC
- Optocoupler protection
- LED status indicates relay ON/OFF state.
- The 10-16 road can be any full-on/off or any road
- Common terminal(com) in each rely is user friendly and can be accessed by different signal
- Normally closed or normally open with each port
- Strong anti-jamming ability and stable performance
- The on-board power supply module doesn’t need any external power
- Dimension: 180*90*20mm
- Weight: 100gm
16 CHANNEL 5V RELAY
- 16 channel 5V relay board
- Operating voltage: 5V
- Supply current: 500mA
- Relay contact current capacity of 10A @250 V AC/10A@ 30V AC
- Optocoupler protection
- Low state voltage: 0V to 0.5V (relay is ON)
- High state voltage: 3.7V to 5V(relay is OFF)
- Single-chip design with reliable performance
- Strong anti-interferences
- Strong anti-jamming ability and stable performance
- The on-board power supply module doesn’t need any external power
- Common terminal(com) in each rely is user friendly and can be accessed by different signal
- Dimension: 180*90*20mm
- Weight: 100gm
16-Channel 12-bit PWM/Servo Driver I2C interface PCA9685 for Arduino Raspberry Pi
- Adjustable frequency PWM up to about 1.6 kHz
- 12-bit resolution for each output – for servos, that means about 4us resolution at a 60Hz update rate
- Configurable push-pull or an open-drain output
- The output enable pin to quickly disable all the outputs
- Terminal block for power input
- Reverse polarity protection on the terminal block input
- Green power-good LED
- 3 pin connectors in groups of 4 so you can plug in 16 servos at once
- Chainable design
- A spot to place a big capacitor on the V+ line
- 220-ohm series resistors on all the output lines to protect them, and to make driving LEDs trivial.
- This board/chip uses an I2C 7-bit address between 0x60-0x80, selectable with jumpers.
1×4 Key Matrix Switch Keypad
- Key Type: 4×1;
- Voltage: DC 12 Volt
- Mount Style: Self-Adherence
- Circuit Rating: 35 VDC, 100 mA.
- Contact Bounce : <=5ms
- Life Expectancy: 1 million closures
- Operation Temperature : -20 to +40 °C
- 5 pins 2.54mm pitch connector, 4×1 type 4 keys.
- Force: 250-350g
- Contact Bounce: Greater than 1s
- Cable Length: 52mm
- Ultra-thin design & adhesive backing provides easy integration to any project
- Excellent price-performance ratio
- Easy communication with any microcontroller
- Used widely in industrial and home electronic equipment's, instruments, etc.
2 CHANNEL 5V RELAY
- High current relay
- Two LED S to indicate relays ON/OFF status
- Low-level trigger expansion board
- Opto isolation circuitry
- Works with logic level signal 3.3V or 5V devices
- Can be used as normally open (NO) or normally closed (NC)
- Back EMF protection
- Ensures diode current protection
- AC control voltage: 250v @mx10A
- DC control voltage: 30V @max 10A
- Easy installation and fixing
2.8 inch SPI Screen Module TFT Interface 240 x 320 without Touch
24V 2CO 6A PCB Relay
- Voltage: 24V
- Current: 6A
- Complete range from PCB to power relays to cover all of your switching requirements
- International certifications and approvals including CE, CSA, EAC, PCT, RINA, VDE and RoHS, providing quality assurance of a market leading product
- Compact construction allowing for most efficient use of space

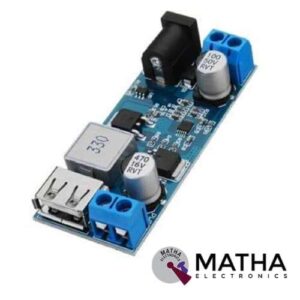

24V/12V to 5V 5A Power Module DC-DC XY-3606 Power Converter
- Working voltage: DC 9V–36V
- Output voltage: 5.2V/5A/25W
- 9~24V input: Output 5.2V/6A/30W
- 24~32V input: output 5.2V/5A/25W
- 32~36V input: output 5.2V/3.5A/18
- The synchronous rectification scheme, wide voltage, high current, high efficiency.
- With DC plug and terminals, easy to use.
- With USB port, fast-charge identification chip compatible with Android and iPhone mobile phones.
3 Axis Accelerometer ADXL 335
3.3V/5V MB102 Breadboard Power Supply Module
- Input voltage: 6.5V to 12V
- Output voltage: 3.3V to 5V
- Output current: 700Ma
- Apply to MB102 breadboard
- Sorting jumpers used to switch voltage between 3.3V and 5V
- Onboard LED indicator to show the presence of power
- Short circuit protection
- Fits securely on standard 400 and 830 points on the breadboard
- Dimensions: 53*32*23mm
- Weight: 10gm
3.5″ inch ILI9486 TFT Touch Arduino Shield LCD Module
- 5″ diagonal LCD TFT display, with bright 4 white-LED backlights, default state: on
- It can control the backlight to connect the transistor to a digital pin
- 480×320 Pixels, with colourful and 18-bit, 262,000 different kinds of shade
- 4-wire resistive touchscreen
- 8-bit digital interface, plus 4 control lines
