433MH RF Module Green
- Wide input supply (2.5 V to 12V)
- Easy to integrate (V+, GND, and Data)
- The device is in deep sleep mode when the Data pin is grounded
- Very small dimension
Receiver Module specification
- Operation voltage: DC5V
- Static Current: 4MA
- Receiver frequency: 433.92MHZ; 315 Mhz
- Sensitivity:-105DB
- Dimension:30*14*9mm
- External Antenna:32CM signal wire, spiral
Transmitter Module Specification
- Operating voltage: 3-12V
- Operating frequency: 433.92MHz; 315Mhz
- Standby current: 0mA
- Operating current :20-28mA
- Transmission distance:> 500m (open to receiving plate sensitivity at-103dBm distance of more than)
- Output Power: 16dBm (40mW)
- Transfer rate: <10Kbps
- Modulation mode: OOK (Amplitude Modulation)
- Operating Temperature: -10 ℃ ~ +70 ℃
- Size: 19 × 19 × 8mm
4×4 Keypad Board Matrix Keyboard 16 Key Buttons For Arduino
- 4×4 Matrix Keyboard Module with 16 buttons
- Small in size and hence Save space
- More convenient to use
- Expanded development application modules for single chip
- With 16 keys and an 8 pin
- The maximum voltage across each button: 24v
- The maximum current across each button: 3mA
- Easy communication with any microcontroller
- Ultra-thin design
- Adhesive backing provides easy integration
- High price-performance ratio
- Allows microcontroller to scan 8 output pins to check which 16 button
- Long life
- Maximum operating temperature: 0 degrees to 50 degrees Celsius
- Dimension: 70*77*1mm
- Weight: 7.5gm
5 Channel Tracking Sensor Module Board Trace Module Infrared Detection
- 5 channel high sensitivity sensor
- Operating Voltage: 0V - 5.5V
- Detection distance: 0 - 4cm (black and white line sensors), 0 - 5cm (adjustable distance detection)
- High accuracy for tracking black lines.
- Special touch sensor design, making the robot design simple
- Integrated infrared sensor barrier unblinded and distance can be adjusted by sliding rheostat
- Digital output signal
- Indicator LEDs
8 CHANNEL 5V RELAY
- Relay operating voltage: 5V
- 8 channel
- High impedance controller pin
- One normally closed contact and one normally opened
- Useful for appliances control
- Power supply indicator and control indicator lamp
- Pull-down circuit to avoid malfunction
- Can control both DC and AC to 220v AC load
- Works with both 3.3 V and 5 V logic with the less current drive
- 3 terminals per SPDT relay
- Standard interface can be directly controlled by a microcontroller like Arduino, 8051, AVR, PIC, DSP, ARM, MSP430, TTL logic
- Dimension: 7*6.4*1 inch
8 Channel Tracking Sensor Module Board Trace Module Infrared Detection

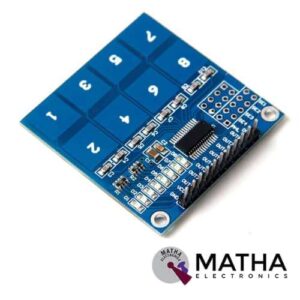

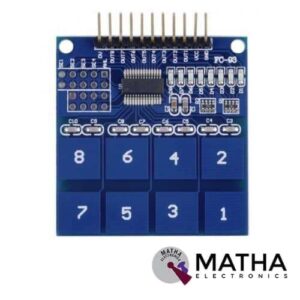

8 CHANNEL TTP226 CAPACITIVE TOUCH SENSOR
- On-board TTP226 capacitive touch induction IC
- On-board 8-way level indicator
- Working voltage: 2 V to 5.5 V DC
- Adjustable output mode, key output mode
- Low power consumption
- Can replace the traditional touch of a button
- Fixture screw-holes for easy positioning & installation
- Typical high Voh = 0.8VCC
- Typical Vol = 0.3VCC
- Output Sink Current: 8mA
- Output pin pull-up current: 4mA
- Response time (Low Power mode): 220mS
- Response time: 60mS
- Onboard 8-level status indicator
- Dimension: 47*46mm

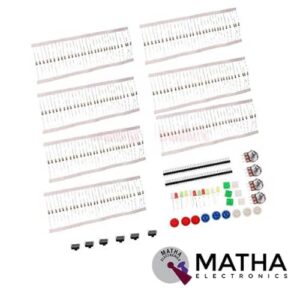

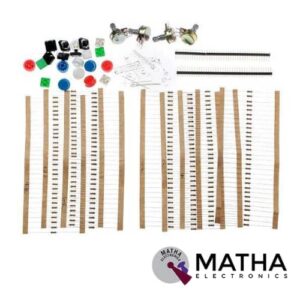

A1 Universal Carbon Resistors & Rotary Potentiometers Parts Set for Arduino
A4988 STEPPER MOTOR DRIVE CONTROLLER BOARD
- Operating voltage supply: 8 V to 35 V
- Continuous current per phase: 1 Amp
- Maximum current per phase: 2 Amp
- Minimum logic voltage: 3V
- Maximum logic voltage: 5.5V
- Microstep resolutions: Full, 1/2, 1/4, 1/8, and 1/16
- Compact size, easy to install and use.
- All jumpers hit the ON position to indicate 16 subdivisions (4988) or 32 subdivisions (8825).
- Jm connection motor; Jv Connects 5V and 12V-24V Power Supply.
- E /S /D /G of Jc corresponds to Enable /Step /Dir /Gnd driving signal output on the connection respectively.
A6 GSM GPRS Module Quad Band SMS Voice
- Working voltage: 3.3V-4.2V
- Power voltage> 3.4V
- Standby average current: 3mA
- Working temperature: -30 to + 80
- Supports Quad-band: GSM850, EGSM900, DCS1800 and PCS1900
- Connect onto any global GSM network with any 2G SIM
- Make and receive voice calls using an external 8Ω speaker & electret microphone
- Facility to connect 4-pole TRRS mic and headset
- 8V UART port level – compatible with Arduino, Raspberry-Pi
- Supports serial-based AT Command Set
- Accepts Micro SIM Card
- Send and receive voice calls and SMS messages
- Class 10 GPRS with 85.6Kbps download speed and 42.8Kbps upload speed
- Dimensions: 22.8 × 16.8 × 2.5mm
AC-DC Power Module HLK-5M05 230V to 5V /5W
- Meet UL, CE requirements
- Rated input voltage: AC 100V -230V
- Input voltage range: 90V -264V AC
- Maximum input current: <0.2A
- Input current surge: <10A
- Maximum input voltage: <270V AC
- Input Low Voltage Efficiency: Vin=110V AC,Output full-load≥ 69%
- Input High Voltage Efficiency: Vin=220V AC,output full-load≥ 70 %
- Long-term reliability
- Voltage Regulation: ±0.2%
- Load Regulation: ±0.5%
- Ultra-thin and small module
- High efficiency, high power density
- Low ripple and low noise
- Output overload and short circuit protection
- Working temperature: – 20 degrees to +60 degrees Celsius
- Storage temperature: -40 degrees to 80 degrees Celsius
- Relative humidity: 5-95%
- Cooling way: Natural cooling
- Atmospheric pressure: 80-106Kpa
- Weight: 21g
- Size: 38x23x18mm
AC-DC Power Module HLK-PM01 230V to 5V /3W
- Meet UL, CE requirements
- Rated input voltage: AC 100V -230V
- Maximum input voltage: <270V AC
- Voltage Regulation: ±0.2%
- Load Regulation: ±0.5%
- High efficiency, high power density
- Ultra-thin and small module
- Low ripple and low noise
- Output overload and short circuit protection
- 100% load ageing and testing
- The product is designed to meet the requirements of the EMC and Safety Test
- Low power consumption, environmental protection, no-load loss <0.1W
- High efficiency, high power density
- Working temperature: – 20 degrees to +60 degrees Celsius
- Storage temperature: + 80-40 -degree
- Relative humidity: 5-95%
- Cooling way: Natural cooling
- Atmospheric pressure: 80-106Kpa
- Weight: 21g
- Size: 38x23x18mm
AC-DC Power Module HLK-PM03 230V to 3.3V /3W
- Meet UL, CE requirements
- Rated input voltage: AC 100V -230V
- Input voltage range: 90V -264V AC
- Maximum input current: <0.2A
- Input current surge: <10A
- Maximum input voltage: <270V AC
- Input Low Voltage Efficiency Vin=110V AC,Output full-load≥ 69%
- Input High Voltage Efficiency Vin=220V AC,output full-load≥ 70 %
- Long-term reliability
- Voltage Regulation: ±0.2%
- Load Regulation: ±0.5%
- Ultra-thin and small module
- High efficiency, high power density
- Low ripple and low noise
- Output overload and short circuit protection
- Working temperature: – 20 degrees to +60 degrees Celsius
- Storage temperature: -40 degrees to 80 degrees Celsius
- Relative humidity: 5-95%
- Cooling way: Natural cooling
- Atmospheric pressure: 80-106Kpa
- Weight: 21g
- Size: 38x23x18mm
