TM1637 4 Bits Digital Tube LED Display Module With Clock Display for Arduino
- Driver Chip: MAX7219
- Input Voltage: 3.7 to 5.3 V
- Input Current: 30 mA
- Display Dimensions: 42x24x12 (LxWxH) mm
- Ease to use.
- Ease of multiplexing.
- Can use as a 4 digit display unit.
- Can use as a clock display.
- The counter project uses 7 segment display.
- 4 M2 screws positioning holes for easy installation
TTP223 1way
- Power supply for 2 ~ 5.5V DC
- Output high VOH: 0.8VCC V
- Output low VOL: 0.3VCC V
- Response time (touch mode) : 60 mS
- Output Pin Sink Current (@ VCC = 3V, VOL = 0.6V) : 8 mA
- Output pin pull-up current (@ VCC = 3V, VOH = 2.4V) : 4 mA
- Response time (low power mode) : 220 mS
- Low power consumption
- Can replace the traditional touch of a button
- Four M2 screws positioning holes for easy installation
- Size : 24 x 24 x 7.2 mm

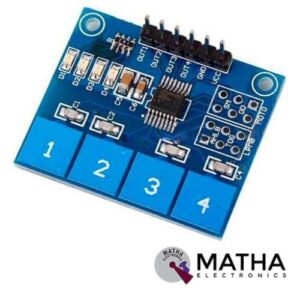

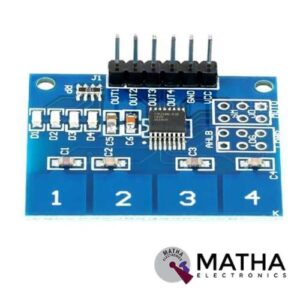

TTP224 4WAY
- On-board TTP224 capacitive touch sensor IC 4 keys
- 4 board-level status indicator
- Working voltage: 2.4V-5.5V
- Advanced Pins breakout, so that the output mode and working mode are selectable.
- Low power selection
- Operating Current: < 9 µA
- Fast Mode and Low Power Mode
- Various Output Mode selection
- Outputs sensing via dedicated output pins
- PCB board size: 35 (mm) x 29 (mm)
TTP229 16WAY
- On-board TTP229 capacitive touch sensor IC
- Operating voltage 2.4V~5.5V.
- Built-in regulator with external enable / disable option.
- Operating current, @VDD=3V no load.
- At low power mode typical 2.5uA.
- At fast mode typical 9.0uA; @VDD=3V.
- The response time is about 100mS at fast mode, 200mS at low power mode
- Built-in regulator
- Adjustable sensitivity
- Two modes
- Simple 8 key mode with independent 8 Channel parallel output.
- Advanced 16 Key modes with I2C interface output.
- Provides Fast mode and Low Power mode selection by pad option (LPMB pin).
- Provides direct mode or toggle mode CMOS output or open-drain output.
- Auto calibration for life and the re-calibration period is about 4.0sec when the key has not to been touched.
- PCB Size: 49.3 x 64.5 mm
TURBIDITY SENSOR
- Working voltage: DC5V
- Measure water turbidity and estimate water quality
- Operating Current: 30mA (MAX)
- Response time : <500ms
- Digital and analogue output
- High level: 5V, low level: 0V
- Operating temperature: -30 to 80 degrees C
- Storage temperature:-10 to 80 degrees C
- Compatible with Arduino, Raspberry Pi, AVR, PIC, etc.
- Weight: 15g
Ultrasonic Module HC-SR-04
- Sensor Type: Ultrasonic
- Output: Digital Sensor
- Voltage: 5VDC
- Operating Current: 15mA
- Measure Angle: 15°
- Ranging Distance: 2cm - 4m
- Static current: < 2mA
- Level output: high-5V
- Output Signal:5V
- High Precision: Up to 2 mm
- Input Trigger Signal: 10µs TTL impulse
- Echo Signal: Output TTL PWL Signal
- High sensitivity ultrasonic range sensor
- Works with Arduino board
Ultrasonic Module Waterproof
- Operating Voltage: 5 V
- Sonar Sensing Range: 25-450 cm
- Sensing Range: 450 cm
- Frequency: 40 kHz
- Resolution: about 0.5cm
- Quiescent current: 5mA
- Total current draw: 30mA
- Beam Angle: less than 50 degrees
- Working temperature: -10 ~ 70 Celsuis
- Storage temperature: -20 ~ 80 Celsuis
- Small size, easy to use
- Low voltage, low power consumption
- High accuracy
- Strong anti-jamming
- Integrated with wire enclosed waterproof probe
- Suitable for wet, harsh measurement
USB Control Module 1 Channel 5V Relay Module (No Need Driver)
- Contact type: NC / COM / NO
- Input current: ≥300mA
- Input voltage: DC 5V
- Support Win7, XP 32-bit systems
- Onboard square USB interface, stable connection.
- Use an imported high-performance USB control chip.
- Application code: Green indicates that the relay is closed, the red disconnect
- Military-grade PCB board production
- Using genuine Single relay, the module uses HID technology, without any driver on the windows system plug and play, easy to use and simple
- Military-grade PCB board production
- Board power outlets and terminals, two kinds of access to power is flexible. After connecting the power, even if the computer is off or unplug the USB from the computer, the relay can also remain set.
USB PC Intelligent Control Module 2 Channel 5V Relay Module (No Need Driver)
- Contact type: NC / COM / NO
- Input current: ≥300mA
- Input voltage: DC 5V
- Support Win7, XP 32-bit systems
- Onboard square USB interface, stable connection.
- Use an imported high-performance USB control chip.
- Application code: Green indicates that the relay is closed, the red disconnect
- Military-grade PCB board production
UV Sensor Module Ml8511 Analog Output UV Sensor Breakout
Voice Module Sound Module Audio Player WT588D
- Input Supply voltage (V) :2.8 ~ 5.5
- Current consumption (sleep mode: 10 µA
- Sampling frequency (kHz): 6 ~
- Built 13Bit/DA converter, and 12Bit/PWM output.
- Support for loading WAV audio formats
- Module package (with FLASH memory and peripheral circuits) have DIP16, DIP28, chip packaging has DIP18, SSOP20, and LQFP32 form
- Built 13Bit/DA converter, and 12Bit/PWM output
- PWM output can directly drive 0.5W/8Ω speakers, push-pull current abundant support DAC / PWM output of two ways;
- Support for loading WAV audio formats;
- USB download mode, support for online download / offline download; WT588D voice chip, even in the case of electricity, will also be able to download the data to the normal SPI-Flash;
- Supports MP3 control mode, control mode button, 3 × 8 key combination control mode, parallel control mode, front-line serial control mode, three-wire serial control mode, and three-wire serial control I / O port expansion output mode;
- Support load 6K ~ 22KHz audio sampling rate
- Up to 500 segments can be loaded for editing audio
