Speech Recognition Module
- Working voltage: 3.3/5V
- Local Voice Recognition
- Very low rate of false triggering
- Speaker connector(JST2.0, the speaker is not included)
- Built-in microphone
- 22 recognition entry
- Default Baud rate: 9600
- Flash: 2Mbytes
- Microphone Sensitivity: -40dB
- Microphone SNR: 58dB
- Operating temperature: 0 – 85 degrees C
SPEED MEASUREMENT SENSOR
- Using imported groove optical coupling sensor, width 5mm.
- Good signal and waveform
- The strong driving ability for more than 15mA.
- Use the LM393 wide voltage comparer.
- It has the output state light, if the output is high level, the lights are off. If the output is low level, it is on.
- If it is covered, it will output a high level; otherwise, its output low level.
- Equipped with a fixed bolt hole, easy install.
- The DO output interface can be directly connected to a micro-controller IO port if there is a block detection sensor, such as the speed of the motor encoder can detect.
- DO modules can be connected to the relay, limit switch, and other functions, it can also with the active buzzer module, compose alarm.
Square MAX7219 8×8 LED Dot Matrix Display Module
- Driver Chip: MAX7219
- Input Voltage: 3.7 to 5.3 V
- Input Current: 320 mA
- Display Dimensions: 32x32x6 mm
- PCD Dimensions: 50×32 mm
- A single module can drive an 8 * 8 common cathode lattice
- Requires only 3 communication wires of MCU
- Cascading multiple Matrix LED Module is very easy
- The size of the display is very compact
- The PCB features M3 holes for mounting.
Super Mini Elm327 V2.1 Bluetooth Obd2 OBD-Ii Car Auto Diagnostic Scanner Android
- Model Name: ELM327 OBD2 Bluetooth
- Type: code readers & scan tools
- Output protocol: Bluetooth
- Material: plastic
- Voltage: 12V
- Current: 45mA
- Wave frequency: 38400Hz
- Applicable scope: 5-10m / 16.4-32.8ft
- Item size: 49*26*30mm
- Support OBDII Protocols: SAE J1850 PWM (41.6 kbaud), SAE J1850 VPW (10.4 kbaud), SAE J1939, J1979
TAP Sensor Module
TB6560 4 Axis Stepper Motor Driver
- Driver Chip: TB6560AHQ
- Operating Voltage: 10-35V
- Nominal Voltage: 24V
- Stepper motor drive current: 1.5A - 3A/phase
- With the large heat sink to ensure good heat dissipation
- Double-pole constant flow PWM actuation output
- 6N137 high-speed OptoCoupler, to ensure a high speed without stepping out.
- Compatible Stepper motors: 2/4 Phase, 4/6/8 leads stepper motors within 3.5A
- 1 - 1/16 micro step setting - higher accuracy, smoother operation
- Full closed-type optical isolation to protect the user's computer and equipment
- Professional design, two-stage signal processing, super anti-jamming
- Bipolar constant current chopper drive motor low-speed non-creeping phenomenon, noise, non-resonant region
- Four input control
-
TCRT5000 Module
- Model TCRT5000
- Chipset LM393
- Operating Voltage: 3.5-5 VDC
- Detection distance 1-25mm
- Operating Current: 15 mA
- Output Channel 0 or 1
- Focal Distance: 2.5 mm
- Designed with a reflected infrared sensor, indicator light.
- Built-in a potentiometer for sensitivity control.
- On-board signal output instructions, the output is a highly effective signal at the same time, the indicator lamp light output signal can be directly and single-chip microcomputer IO connection.
- Signal detection sensitivity can adjust.
- Reserve all the way more circuits (P3 voltage drawn)
- Output form: digital switch output (0 and 1)
- A fixed bolt hole, convenient installation.
- Dimension:32*11*20mm
- Weight:22gm

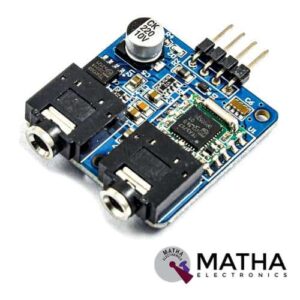

TEA5767 FM Stereo Radio Module
- Directly plug antenna interface.
- I2C bus communication.
- Multi-capacitor combined filter.
- Blue LED power indicator.
- High sensitivity(low noise RF input amplifier).
- High power auto gains control AGC circuit.
- With reverse polarity protection diode.
- With a power output filtering sensor.
- Blue LED power indicator.
- Onboard 3.5mm audio interface.
- If connects with a single chip, only connect the Power Ground and two I2C communication cables.
- LC harmonic oscillator uses a low-cost fixed chip.
- No need to adjust the Intermediate frequency.
- High sensitivity(low noise RF input amplifier).
- High power auto gains control AGC circuit.
- Soft Mute.3.5mm jack for external Antenna.
TEC1-12705 MODULE
- Model number: TEC1-12705
- Operating Voltage: 12V
- Maximum Voltage- Vmax (V) : 15V
- Maximum Current- Imax (A) : 5.2A
- Maximum Power: 54 W
- Power Cord: 350mm
- Internal resistance: 1.98 Ohm +/- 10%
- Life expectancy: 200,000 hours
- Failure rate based on long-time testing: 0.2%.
- Easy transition between the hot side to the cool side and vice-versa just by reversing the polarity of the supply.
- Quality tested cooling cells.
- Solid-state, vibration-free, noise-free.
- Simple to install and operate.
- Should use with a heat sink
- Temperature: 138°C
- Wire Insulation Material: Teflon
- Dimension: 40x40x4.0mm
- Weight: 29g
TEC1-12706
- Model number: TEC1-12706
- Operating Voltage: 12V
- Maximum Voltage- Vmax (V) : 15V
- Maximum Current- Imax (A) : 6A
- Maximum Power: 92 W
- Power Cord: 200mm
- Internal resistance: 1.98 Ohm +/- 10%
- Life expectancy: 200,000 hours
- Failure rate based on long-time testing: 0.2%.
- Easy transition between the hot side to the cool side and vice-versa just by reversing the polarity of the supply.
- Quality tested cooling cells.
- Solid-state, vibration-free, noise-free.
- Simple to install and operate.
- Should use with a heat sink
- Temperature: 138°C
- Wire Insulation Material: Teflon
- Dimension: 40x40x4.0mm
- Weight: 29g
TF-M16P MICRO SD CARD MODULE
- Supports MP3 and WAV decoding.
- Supports a maximum of 32GB micro SD card and 32GB USB flash drive.
- Supports AD key control mode and UART RS232 serial control mode.
- 24-bit DAC output
- Supports dynamic range 90dB and SNR 85dB.
- Supports FAT16 and FAT32 file systems.
- Audio files are sorted by folders; supports up to 99 folders, and each folder can be assigned to 255 sound files.
- Supports inter-cut advertisements.
- 30 levels adjustable volume, and 6 levels adjustable EQ
- Built-in 3W amplifier that can directly drive a 3W/8Ohm speaker.
- Support maximum 3000 audio files under the root directory of the storage device
- Support random playback.
- Support maximum of 99 folders, each folder can store 255 audio files
- Supports playback of specifying folders.
