4.7uf 63V Caps DC Electrolytic Capacitor
455 KHz 2 Pin Crystal Oscillator
TOP243PN Off-line Switcher IC
- Supply Current: 1.6 mA
- Supply voltage range: 85-265VAC
- Power: 25W
- Output Voltage: 12 V
- Switching Frequency: 132 kHz
- Package: TO-DIP-8
- Extended power range for higher power applications
- Â No heatsink required up to 34 W using P/G packages.
- Â Features eliminate or reduce cost of external components.
- Fully integrated soft-start for minimum stress/overshoot.
- Â Externally programmable accurate current limit.
- Â Wider duty cycle for more power, smaller input capacitor .
- Separate line sense and current limit pins on Y/R/F packages

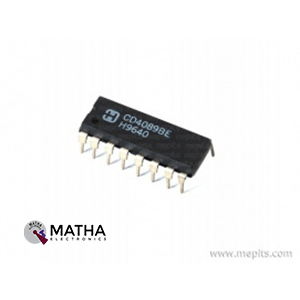

CD4089BE CMOS Binary Rate Multiplier IC
L297 Stepper Motor Controller IC
CD4016 Quad Bilateral Switch IC
IRS2110 High and Low Side Driver IC
- High Side Floating Supply Voltage Max.: 520V
- Logic 1 input voltage Min.: 9.5V
- Logic 0 input voltage Max.: 6V
- High level output voltage Max.: 1.2V
- Low level output voltage Max.: 0.15V
- Total Power Dissipation: 1.6W
- Propagation delay Max.: 160ns
- Rise Time Max.: 35ns
- Fall Time Max.: 25ns
- Package: DIP-14
5S0765 Power Switch IC
- Power Switch
- Drain Voltage: 650V
- Drain Current: 28A
- Supply Voltage: 30V
- Supply Current: 12mA
- Wide Operating Frequency Range Up to 150kHz
- Â Lowest Cost SMPS Solution
- Lowest External Components
-  Low Start-up Current (Max:170µA)
- Low Operating Current (Max:12mA)
- Â Internal High Voltage SenseFET
- Â Over Voltage Protection With Latch Mode (Min23V)
- Â Over Load Protection With Latch Mode
- Over Current Protection With Latch Mode
- Â Internal Thermal Protection With Latch Mode
- Pulse By Pulse Over Current Limiting
- Â Under Voltage Lockout With Hysteresis
- Â External Sync. Terminal

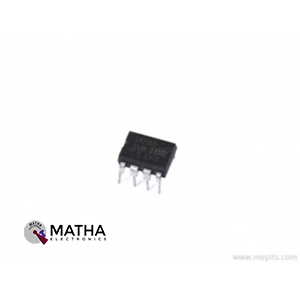

IR2155 Self-Oscillating Half-Bridge Driver IC
- Self-Oscillating Half-Bridge Driver
- High Side Floating Supply Voltage Max.: 625V
- Supply current Max.: 5mA
- Clamp Voltage Max.: 16.8V
- High level output voltage Max.: 100mV
- Low level output voltage Max.: 100mV
- Total Power Dissipation: 1W
- Oscillator frequency Max.: 106kHz
- Rise Time Max.: 120ns
- Fall Time Max.: 70ns
- Package: DIP-8
3BR1765JZ Offline SMPS Current Mode Controller IC
- Offline SMPS Current Mode Controller
- Drain Voltage: 650V
- Supply Voltage: 25V
- Supply Current: 5mA
- 650V avalanche rugged CoolMOS® with built-in Startup Cell
- Active Burst Mode for lowest Standby Power
- Â Fast load jump response in Active Burst Mode
- 65kHz internally fixed switching frequency
- Auto Restart Protection Mode for Overload, OpenLoop, VCC Undervoltage, Overtemperature & Overvoltage
- Â Built-in Soft Start
- Â Built-in blanking window with extendable blanking time for short duration high current
- Â External auto-restart enable pin
- Max Duty Cycle 75%
- Overall tolerance of Current Limiting < ±5%
- Â Internal PWM Leading Edge Blanking
- BiCMOS technology provide wide VCC range
- Built-in Frequency jitter and soft driving for low EMI
3.579545 MHz 2 Pin Oscillator Crystal
- Crystal Case Type : Metal Can
- Crystal Mounting Type : Through Hole
- Frequency : 3.579545MHZ
- Frequency Stability : ± 20ppm
- Frequency Tolerance : ± 20ppm
- Load Capacitance : 20 pF
- No. of Pins : 2
- Operating Temperature Max : 70 °C
- Operating Temperature Min : -10 °C
- Operating Temperature Range : -10°C to +70°C
- Effective Series Resistance : 30 ohm
