Anti-Corrosion Water Level Sensor with Ball Float Switch
- Rating Contract (Max.): 10 W
- Switching Power Supply (Max.): 110VDC
- Pulse current (Max.): 0.5A
- Breakdown Voltage (Max.): 220VDC
- Current (Max.): 1A
- Resistance Contract (Max.): 100 Ω
- Operating Temperature: -10 to 60degree C
- Cable length: 40cm
- Shipment Weight: 0.02 kg
- Float Ball Size : 24×17mm
- Body Total Length: 85mm
- Total Float opening: 70°
- Float Switch ON/OFF angle: Approx. between 15° to 20°

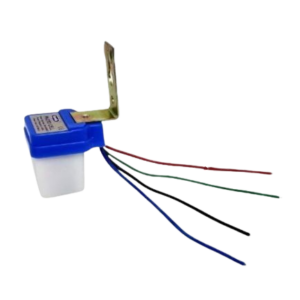

Photo Control Sensor Automatic Street Lighting Switch Photocell Photoswitch
- Input Voltage:220V AC
- Max Load Current: 10A
- Frequency: 50-60Hz
- Colour: White & Blue
- Intelligent Sensor Light Control Switch
- The light turns on in the dark and turn off in the daytime, an intelligent sensor, no need to operate by manual.
- Widely use in streets, high-speed expressways, factories, gardens, airports, farms, schools and other places.
- Dimension: 5 x 4.2 x 3.3cm
FlexiForce Tekscan A401 Sensor
- Thickness - 0.203 mm (0.008 in.).
- Length - 56.9 mm (2.24 in.)**.
- Width - 31.8 mm (1.25 in.).
- Sensing Area - 25.4 mm (1 in.) diameter.
- Connector - 2-pin Male Square Pin.
- Substrate - Polyester.
- Pin Spacing - 2.54 mm (0.1 in.).
- Standard Force Ranges - 111 N (0 - 25 lb) ; 31,138 N (0 - 7,000 lb).
- Ideal For Prototyping And Integration
- Available with Enhanced Stability Series (ESS) pressure-sensitive ink for high-temperature and High-humidity environments
- Thin and flexible
- Easy to use
FlexiForce Tekscan A201 Sensor
- Thickness 0.203 mm (0.008 in.)
- Length 191 mm (7.5 in.)** (optional trimmed lengths:
- 152 mm (6 in.), 102 mm (4 in.), 51 mm (2 in.))
- Width 14 mm (0.55 in.)
- Sensing Area 9.53 mm (0.375 in.) diameter
- Connector 3-pin Male Square Pin (centre pin is inactive)
- Substrate Polyester
- Pin Spacing 2.54 mm (0.1 in)
- Small size is ideal for prototyping and integration
- Thin and flexible
- Easy to use
FlexiForce Tekscan A101 Sensor
- Length : 15.6mm (0.62 in)
- Width: 7.6mm (0.30 in)
- Sensing Area: 3.8mm (0.15 in) diameter
- Thickness: 0.203 mm(0.008 in)
- Connector: 2-Pin Male Square Pin
- Force Ranges (Standard): 18N (4lbs)
- Force Ranges (Max): 45N (10lbs)
- Substrate: Polyester
- Pin Spacing 2.54 mm (0.1 inch)
- Small size is ideal for prototyping and integration
- Thin and flexible
- Easy to use
50Kg Pressure Micro Scale Weighing Sensor
- Capacity : 50.kg
- Output Sensitivity (mv/v): 1.0±0.1.
- Nonlinearity (%FS): 0.03.
- Repeatability (%FS): 0.03.
- Input Resistance: 1000. Ω
- Insulation Resistance : ≥5000.MΩ
- Alloy Steel wired weighing load cell
- High Accuracy
- Simple Structure & Easy Installation.
- Internal 1000 Ω half-bridge strain gauge load cell, the range is 50kg, half-bridge structure
- You can use multiple load sensors simultaneously to increase the capacity range, Parallel use to add additional capacity.
YF-S403 water flow sensor 1-30L/min Flow meter
- Model: YF-S403
- The lowest rated working voltage: DC 4.5 5V - 24V.
- Maximum Operating Current: 15 mA (DC 5V).
- Working voltage range: DC 5 - 18V.
- Load capacity: ≤ 10 mA (DC 5V).
- Working temperature: ≤ 80 ℃
- Working humidity range: 35%-90% RH (no frost)
- Allow Pressure: 1.75Mpa
- Storage temperature: -25 - + 80 ° c
- Save Humidity: 25% - 95% RH
- Flow range: 1-30L / min
- External thread: 3/4 "
- Output interface diameter: Ca. Outside 26mm, inside 12mm, 14mm.
- The seal ring with the upper and lower force structure never leaks.
- Non-violent shock, and chemical erosion.
- Non-throwing or hitting.
- Vertical mounting does not exceed 5 degrees inclination.
- The temperature of the medium should not exceed 120 ℃.
- Dimension: 58*35*26 mm
- Weight: 30g
YF-S401 PVC Water Flow sensor
- Model: YF-S402
- Voltage Range: 5~12 V
- Operating Current: 15 mA (DC 5V)
- Insulation Resistance: >100 MΩ
- Inner Diameter: 4 mm
- Outside diameter: 7 mm
- Proof Water Pressure: <0.8 MPa
- Water Flow Range: 0.3-6 L/min
- Accuracy: ±5% (0.3-3L/min)
- Output Pulse High Level: >4.5 VDC (DC input voltage 5 V)
- Output Pulse Low Level: <0.5 VDC (DC input voltage 5 V)
- Output Pulse Duty Ratio: 50% ± 10%
- Water-flow Formula: 1L = 5880 square waves
- Working Humidity Range: 35% ~ 90% RH (no frost)
- 6 mm hose is recommended
- Avoid unit contact with corrosive chemicals
- The unit must be installed vertically, tilted no more than 5 degrees
- The liquid temperature should be less than 120 C to avoid damage to the unit
- With stainless steel axis in the wheel, abrasion-resistant
- Dimension: 58*35*26 mm
- Weight: 30g
DN40 – 1.5” Water Flow Sensor
- Model: YF-DN40
- Material: Plastic
- Function: Sensor, flow rate control
- Working Voltage: DC 5V~24V
- Thread size: BSP 1 1/2”
- Size:L 92x OD46 5"
- Colour: Black color
- Flow rate: 5~200L/min
- Flow Pulse: F(Hz)=(0.45xQ) +/-3% Q=L/min
- 1L water= 27Pulse
- Working Current: 15mA (DC5 V)
- Working Voltage: DC 4.5V
- Load Capacity: =10 mA (DC 5 V)
- Operating Working Temperature: -25 to +80 Degree C
- Liquid Temperature: 85
- Accuracy: 3~5%
- Working environment: water, liquid, light oil etc.
- Hydrostatic pressure> 1.75MPa meet
- Insulation resistance> 100M> 100M
- Accuracy in 1 ~ 120L / MIN ± 2% in line
- Flow pulse characteristics F = (0.45 * Q) Q = L / Min meet
- Weight: 146g
YF-S201 ½” Water Flow Sensor
- Model: YF-S201
- Sensor Type: Hall effect
- Working Voltage: 5 to 18V DC
- Max current draw: 15mA @ 5V.
- Output Type: 5V TTL
- Pulses per Litre: 450
- Working Flow Rate: 1 to 30 Liters/Minute
- Accuracy: ±10%
- Maximum water pressure: 2.0 MPa
- Working Temperature range: -25 to +80℃
- Working Humidity Range: 35%-80% RH
- Output duty cycle: 50% +-10%
- Output rise time: 0.04us
- Output fall time: 0.18us
- Flow rate pulse characteristics: Frequency (Hz) = 7.5 * Flow rate (L/min)
- Durability: minimum 300,000 cycles
- 1/2″ nominal pipe connections, 0.78″ outer diameter, 1/2″ of thread.
- The simple and compact module.
- Easy to Install.
- High Sealing Performance.
- High-Quality Hall Effect Sensor.
GP2Y0A41SK0F 4-30cm
- Model: GP2Y0A41SK0F
- Operating Voltage Range: 4.5~5.5V
- Average current consumption: 30 mA
- Distance measuring range: 4 cm to 30 cm
- Output type: Analog voltage
- Output voltage differential over distance range: 2.05 V (typical)
- Update period: 38 ± 10 ms
- Screw Holes: 37mm apart, 3 mm in diameter
- Connecting cable length:15cm
- Very Small in size
- Less influence on the colour of reflected objects, reflectivity
- Analogue voltage corresponding to the voltage
- External control circuit unnecessary
- Low cost
- The sampling rate of nearly 25 readings per second
- Dimension: 29.5×13×21.6 mm
- Weight: 3.5 gm
GP2Y0A02YK0F 20-150cm
- Model: GP2Y0A02YK0F
- Operating Voltage Range: 4.5~5.5V
- Average current consumption: 30 mA
- Distance measuring range:20 cm to 150 cm
- Output type: Analog voltage
- Output voltage differential over distance range: 2.05 V (typical)
- Update period: 38 ± 10 ms
- Screw Holes: 37mm apart, 3 mm in diameter
- Connecting cable length:15cm
- Very Small in size
- Less influence on the colour of reflected objects, reflectivity
- Analogue voltage corresponding to the voltage
- External control circuit unnecessary
- Low cost
- The sampling rate of nearly 25 readings per second
- Dimension: 29.5×13×21.6 mm
- Weight: 3.5 gm
