CA3140 Operational Amplifier IC

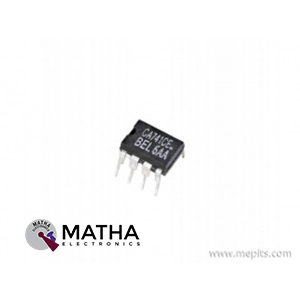

CA741C 0.9MHz Single High Gain Operational Amplifier IC
CD4000 Dual 3-Input NOR Gate Plus Inverter IC
CD4001 Quad 2-Input NOR Gate IC
- Quad 2-Input NOR Gate
- Supply Voltage Range: 3 to 15V
- Power Dissipation: 200mW
- Low level Output Voltage Max.: 0.05V
- High level Output Voltage Min.: 4.95V
- Low level Input Voltage Max.: 1.5V
- High level Input Voltage Min.: 3.5V
- Propagation Delay Time Max.: 250ns
- Output Drive Current: -3.2mA
- Package: DIP-14
CD4002 Dual 4-Input NOR Gate IC
- Dual 4-Input NOR Gate
- Supply Voltage Range: 3 to 15V
- Power Dissipation: 200mW
- Low level Output Voltage Max.: 0.05V
- High level Output Voltage Min.: 4.95V
- Low level Input Voltage Max.: 1.5V
- High level Input Voltage Min.: 3.5V
- Propagation Delay Time Max.: 250ns
- Output Drive Current: -3.2mA
- Package: DIP-14
CD4007 Dual Complementary Pair Plus Inverter IC
- Dual Complementary Pair Plus Inverter
- DC Supply Voltage Range: −0.5 to +18.0 V
- Input or Output Voltage Range: −0.5 to VDD +0.5 V
- Input or Output Current: ±10 mA
- Power Dissipation: 500 mW
- Low level Output Voltage Max.: 0.05V
- High level Output Voltage: 5.0V
- Low level Input Voltage: 2.25V
- High level Input Voltage: 2.75V
- Propagation Delay Time Max.: 125ns
- Package: DIP-14
CD40106 Hex Inverting Schmitt Trigger IC
- Hex Inverting Schmitt Trigger
- Supply Voltage Range: 3 to 15V
- Number Of Circuits: 6
- Quiescent Current Max.: 4µA
- Low level Output Current: 3.4mA
- High level Output Current: 3.4Ma
- Positive Going Input Voltage Max.: 3.5V
- Negative Going Input Voltage Max.: 3V
- Propagation Delay Time Max.: 180ns
- Package: DIP-14
CD4012 Dual 4 Input NAND Gate IC
- Dual 4 Input NAND Gate:
- Logic Family: HCF40
- No Of Gates: 2
- No Of Input Lines: 4
- No Of Output Lines: 1
- Supply Voltage Range: 3 to 20V
- Input Current: ±10mA
- High Level Output Current: - 2.4 mA
- Low Level Output Current: 2.4 mA
- Low level Output Voltage: 0.05V
- High level Output Voltage Min.: 4.95V
- Low level Input Voltage Max.: 1.5V
- High level Input Voltage Min.: 3.5V
- Power Dissipation: 200mW
- Operating Temperature: -55 to +1250C
- Propagation Delay Time Max.: 250ns
- Package: DIP-14
CD4013 Dual D-type Flip-Flop IC
- Dual D-type Flip-Flop
- Supply Voltage: 3 to 20V
- Input Current: ± 10 mA
- Power Dissipation: 200mW
- Low level Output Voltage: 0.05V
- High level Output Voltage min.: 4.95V
- Low level Input Voltage Max.: 1.5V
- High level Input Voltage Min.: 3.5V
- Propagation Delay Time Max.: 400ns
- Maximum Clock Frequency: 24MHz
- Package: DIP-14

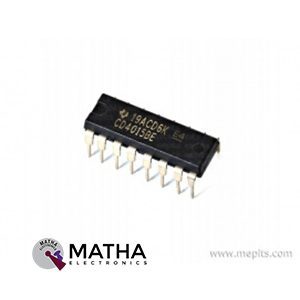

CD4015BE CMOS Dual 4-Stage Static Shift Register IC
CD4017 Decade Counter With 10 Decoded Outputs IC
- Decade Counter With 10 Decoded Outputs
- Supply Voltage: 3 to 20V
- Input Current: ±10mA
- High level Output Voltage Min.: 4.95V
- Low level Output Voltage: 0.05V
- High level Input Voltage Min.: 3.5V
- Low level Input Voltage Max.: 1.5V
- Power Dissipation: 200mW
- Propagation Delay Time Max.: 650ns
- Package: DIP-16
- High noise immunity 0.45 VDD (typ.)
- Low power Fan out of 2 driving 74L
- TTL compatibility or 1 driving 74LS
- Medium speed operation 5.0 MHz (typ.)with 10V VDD
- Low power 10 mW (typ.)
- Fully static operation
