CD4033BE CMOS Decade Counter Divider IC
CD4038BE CMOS Triple Serial Adder IC
CD4041 Quad True or Complement Buffer IC
- Quad True or Complement Buffer
- Supply Voltage Range:Â 3 to 20V
- Input Current: ±10mA
- Power Dissipation:Â 200mW
- Low level Output Voltage:0.05V
- High level Output Voltage Min.:Â 4.95V
- Low level Input Voltage Max.:Â 1V
- High level Input Voltage Min.:Â 4V
- Propagation Delay Time Max.:Â 120ns
- Package:Â DIP-14
CD4042 Quad Clocked D Latch IC
- Quad Clocked D Latch
- Supply Voltage Range:Â 3 to 20V
- Input Current: ±10mA
- Power Dissipation:Â 200mW
- Low level Output Voltage:Â 0.05V
- High level Output Voltage Min.:Â 4.95V
- Low level Input Voltage Max.:Â 1.5V
- High level Input Voltage Min.:Â 3.5V
- Propagation Delay Time Max.:Â 500ns
- Package:Â DIP-16
- High noise immunity 0.45 VDD (typ.)
- Low power TTL compatibility Fan out of 2 driving 74L or 1 driving 74LS
- Clock polarity control
- Fully buffered data inputs
- Q and Q outputs

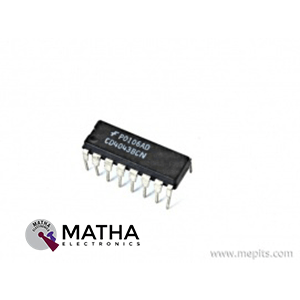

CD4043 CMOS Quad 3-State RS Latch IC
- CMOS Quad 3-State R/S Latch
- Number of Circuits:Â 1
- Logic Type:Â CMOS
- Logic Family:Â CD4000
- Polarity:Â Non-Inverting
- Number of Output Lines:Â 4
- High Level Output Current:Â - 4.2 mA
- Propagation Delay Time:Â 350 ns at 5 V, 175 ns at 10 V, 120 ns at 15 V
- Package:Â PDIP 16
- Supply Voltage Range:Â 3 to 15 V
- Operating Temperature Range:Â -55 C to 125 C
CD4044 CMOS Quad 3-State RS Latch IC
- CMOS Quad 3-State RS Latch
- Number of Circuits:Â 1
- Logic Type:Â CMOS
- Logic Family:Â CD4000
- Polarity:Â Non-Inverting
- Number of Input Lines/Output Lines:Â 8/4
- High Level Output Current:Â - 4.2 mA
- Propagation Delay Time:Â 350 ns at 5 V, 175 ns at 10 V, 120 ns at 15 V
- Supply Voltage Range:Â 3 to 15V
- Operating Temperature Range:Â - 55 C to + 125 C
- Package:Â PDIP 16
CD4045BE CMOS 21-Stage Counter IC
CD4049 Hex Buffer or Converter IC
- Hex Buffer or Converter(Inverting)
- Supply Voltage Range:Â 3 to 20V
- Input Current: ±10mA
- Power Dissipation:Â 200mW
- Low level Output Voltage:Â 0.05V
- High level Output Voltage Min.:Â 4.95V
- Low level Input Voltage Max.:Â 1V
- High level Input Voltage Min.:Â 4V
- Propagation Delay Time Max.:Â 120ns
- Package:Â DIP-16
CD4050 Hex Buffer or Converter IC
- Hex Buffer or Converter(Inverting)
- Supply Voltage Range:Â 3 to 20V
- Input Current: ±10mA
- Power Dissipation:Â 200mW
- Low level Output Voltage:Â 0.05V
- High level Output Voltage Min.:Â 4.95V
- Low level Input Voltage Max.:Â 1.5V
- High level Input Voltage Min.:Â 3.5V
- Propagation Delay Time Max.:Â 140ns
- Package:Â DIP-16
