Mosfet 10N90 Big
- Type Designator: 10N90
- Type of Transistor: MOSFET(Big)
- Type of Control Channel: N -Channel
- Maximum Power Dissipation (Pd): 183 W
- Maximum Drain-Source Voltage |Vds|: 900 V
- Maximum Gate-Source Voltage |Vgs|: 30 V
- Maximum Drain Current |Id|: 10 A
- Maximum Junction Temperature (Tj): 150 °C
- Rise Time (tr): 54 nS
- Drain-Source Capacitance (Cd): 245 pF
- Maximum Drain-Source On-State Resistance (Rds): 1.15 Ohm
- Package: TO-247 TO-3P
IRFP9240 P-Channel Power Mosfet Transistor -200V -12A
- P-Channel Power Mosfet
- Drain Current: ID= -12A at TC=25℃
- Drain Source Voltage: VDSÂ = -200V
- Static Drain-Source On-Resistance: RDS(on) < 500mΩ
- Power Dissipation: 150W
- Package: TO-247AC
- Dynamic dV/dt Rating
- Repetitive Avalanche Rated
- Isolated Central Mounting Hole
- Fast Switching
- Ease of Paralleling
- Simple Drive Requirements
- Lead (Pb)-free Available
IRFP240 N-Channel Power Mosfet Transistor 200V 20A
IRFP264N N-Channel Power Mosfet Transistor 250V 44A
8N60 N-Channel Power Mosfet Transistor 600V 8A Big

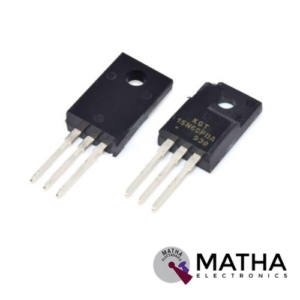

G15N60 N-Channel Power Mosfet Transistor 600V 15A
- N-Channel Power Mosfet
- Type Designator: 15N60
- Type of Transistor: MOSFET
- Type of Control Channel: N -Channel
- Maximum Power Dissipation (Pd): 312 W
- Maximum Drain-Source Voltage |Vds|: 600 V
- Maximum Gate-Source Voltage |Vgs|: 30 V
- Drain Current |Id|: 15 A
- Maximum Junction Temperature (Tj): 150 °C
- Rise Time (tr): 200 nS
- Drain-Source Capacitance (Cd): 270 pF
- Maximum Drain-Source On-State Resistance (Rds): 0.5 Ohm
- Power Dissipation: 38.5W
- Package: TO-220
2SK954 N-Channel Power Mosfet Transistor 800V 3A
- Type of Transistor: MOSFET
- Type of Control Channel: N -Channel
- Maximum Power Dissipation (Pd): 100 W
- Maximum Drain-Source Voltage |Vds|: 800 V
- Maximum Gate-Source Voltage |Vgs|: 20 V
- Maximum Gate-Threshold Voltage |Vgs(th)|: 4 V
- Maximum Drain Current |Id|: 3 A
- Maximum Junction Temperature (Tj): 150 °C
- Turn-on Time (ton): 60 nS
- Drain-Source Capacitance (Cd): 90 p
- Maximum Drain-Source On-State Resistance (Rds): 4 Ohm
- Package:Â TO3P
