Mosfet 15R1203
- Function : 1200V, 15A
- Reverse conducting IGBT / Reverse conducting IGBT
- Package: TO-247-3 Type
- Powerful monolithic body diode with a low forward voltage
- Designed for soft commutation only
- very tight parameter distribution
- high ruggedness, temperature stable behavior
- low VCEsat
- easy parallel switching capability due to positive
- temperature coefficient in VCEsat
- Low EMI
Mosfet 10N90 Big
- Type Designator: 10N90
- Type of Transistor: MOSFET(Big)
- Type of Control Channel: N -Channel
- Maximum Power Dissipation (Pd): 183 W
- Maximum Drain-Source Voltage |Vds|: 900 V
- Maximum Gate-Source Voltage |Vgs|: 30 V
- Maximum Drain Current |Id|: 10 A
- Maximum Junction Temperature (Tj): 150 °C
- Rise Time (tr): 54 nS
- Drain-Source Capacitance (Cd): 245 pF
- Maximum Drain-Source On-State Resistance (Rds): 1.15 Ohm
- Package: TO-247 TO-3P
Mosfet 12N60
- 12N60 is the type designation.
- MOSFET is the transistor type used in the 12N60.
- N-Channel is the type of control channel.
- W: 225 Maximum power dissipation (Pd)
- |Uds| maximum drain-source voltage, V: 600
- Maximum drain current |Id|, A: 12 Maximum gate-source voltage |Ugs|, V: 30
- Maximum junction temperature (Tj), in degrees Celsius: 150
- 12N60 transistor rise time (tr), nS: 115
- Capacitance at the drain (Cd), pF: 200
- Maximum on-state drain-source resistance (Rds), Ohm: 0.6
Mosfet 11N60 Small
- Type Designator: 11N60
- Type of Transistor: MOSFET(Big)
- Type of Control Channel: N -Channel
- Maximum Drain-Source Voltage |Vds|: 650 V
- Maximum Drain Current |Id|: 11 A
- Maximum Junction Temperature (Tj): 150 °C
- Extremely low gate charge (often Qg=40nC)
- A low effective output capacitance (typical Coss.eff=95pF)
Mosfet 10N90
Mosfet 108N03
Mosfet 105N03
- Type of Transistor: MOSFET
- Type of Control Channel: N -Channel
- Maximum Power Dissipation (Pd): 140 W
- Maximum Drain-Source Voltage |Vds|: 30 V
- Maximum Gate-Source Voltage |Vgs|: 20 V
- Maximum Gate-Threshold Voltage |Vgs(th)|: 2.5 V
- Maximum Drain Current |Id|: 150 A
- Maximum Junction Temperature (Tj): 175 °C
- Total Gate Charge (Qg): 42 nC
- Rise Time (tr): 91 nS
- Drain-Source Capacitance (Cd): 400 pF
- Maximum Drain-Source On-State Resistance (Rds): 0.0035 Ohm
- Package:Â TO-220
Mosfet 100N03 SMD
- Type of Transistor: MOSFET
- Type Designator:100N03
- Type of Control Channel: N -Channel
- Maximum Drain-Source Voltage:30 V
- Maximum Gate-Source Voltage:20 V
- Maximum Drain Current:100 A
- Drain-Source Capacitance:1300 pF
- Maximum Operating Junction Temperature:175 °C
- Maximum Drain-Source On-State Resistance:0.0055 Ohm
- Maximum Power Dissipation:180 W
- Package: TO220
- Simple Drive Requirement
- Low Gate Charge
- Fast Switching
- RoHS Compliant
- High cell density for ultra-low RdsonAvalanche voltage and current are fully characterized.
IRF9640 P-Channel Power Mosfet Transistor -200V -11A
- P-Channel Power Mosfet
- Drain Current: ID= -11A at TC=25℃
- Drain Source Voltage: VDSÂ = -200V
- Static Drain-Source On-Resistance: RDS(on)=500mΩ
- Power Dissipation:Â 125W
- Package: TO-220AB
- Dynamic dV/dt Rating
- Repetitive Avalanche Rated
- Isolated Central Mounting Hole
- Fast Switching
- Ease of Paralleling
- Simple Drive Requirements
- Lead (Pb)-free Available

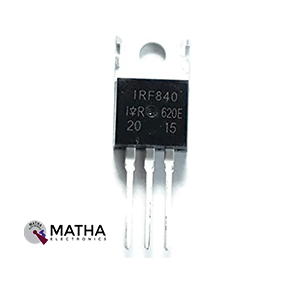

IRF840 N-Channel Mosfet Transistor 500V 8A
IRF740 Power Mosfet Transistor 400V 10A
IRFP9240 P-Channel Power Mosfet Transistor -200V -12A
- P-Channel Power Mosfet
- Drain Current: ID= -12A at TC=25℃
- Drain Source Voltage: VDSÂ = -200V
- Static Drain-Source On-Resistance: RDS(on) < 500mΩ
- Power Dissipation: 150W
- Package: TO-247AC
- Dynamic dV/dt Rating
- Repetitive Avalanche Rated
- Isolated Central Mounting Hole
- Fast Switching
- Ease of Paralleling
- Simple Drive Requirements
- Lead (Pb)-free Available
