MICRO SD CARD ADAPTER
- Support Micro SD (<=2G), Micro SDHC cards(<=32g)
- Operating voltage: DC 2.6 V to 3.6V
- Quiescent current: 16 μA
- Support playing of 4-bit ADCPM format
- Support FAT files system SD carrier
- Recognize voice files automatically
- Support microprocessor and key control
- Audio output: 16bit DAC and PWM
- Maximum voice storage: 512 voice
- The level conversion circuit board that can interface level is 5V or 3.3V
- Communication interface is a standard SPI interface
- The power supply is 4.5V~5.54V, 3.3v
- Dimension: 4.1*2.4CM
MAX485 TTL TO RS-485 MODULE
- Operating voltage: 5V
- On board MAX485 chip
- Slew rate limited transceiver
- All the pins of the chip are controlled by the microcontroller
- use differential signalling for immunity
- 120R terminating resistor
- Power LED indication
- Distances up to 1200 meters
- Use differential signalling for noise immunity
- Speeds up to 2.5Mbit/Sec
- Multi-drop supports up to 32 devices on the same bus
- Low power consumption
- On-board 5.08mm pitch 2P terminal to facilitate RS-485
- DIMENSION: 44*14mm
IR Proximity Module using TSOP
- Operating wavelength: Near-infrared region 700 nm to 1400 nm
- Main Chip: LM358
- Operating Voltage Range: 3.6V-5V DC
- Average Current Consumption: 06mA
- Distance Measuring Range: 2 to 30cm
- Detection angle: 35 °
- Easy to assemble and use
- On-board detection indication
- the effective distance range of 2cm to 80cm
- A pre-set knob to fine-tune distance range
- If there is an obstacle, the indicator lights on the circuit board
- 3mm screw holes for easy mounting
- Dimensions: 48 x 14 x 8mm
- Weight:5gm

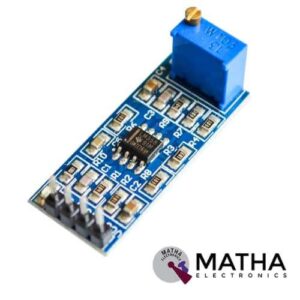

LM358 100 Times Gain Amplification Module Operational Amplifier Module
- On-board LM358 Chip
- 100 times gain circuit design
- On-board LM358 chip
- On-board 10K adjustable resistor, could adjust amplifier times
- On-board power indicator lamp
- All pins lead, directly Input/output signals
- Working voltage: 5V-12V DC
- The chip has led major pin can be directly input and output signals.
- PCB size: 32.7mm x 13.3mm
X9C104 Digital Potentiometer Module
MT8870 DTMF Audio/Speech Decoding Telephone Module
- Power Input: 5V Nominal (4.5V - 5.5V)
- 5 Channel Interface
- Detects 0-9, A-D, *, #
- 54” Pin pitch
- On-board 3.5mm jack input Facility
- On-board MT8870 frequency decoder chip
- On-board voice input interface
- On-board LED lights for output state indication
- Low power consumption
- Internal gain setting amplifier
- Adjustable guard time
- 5 Channel interface
- Power-down mode
- Inhibit mode
- Does not require external circuits or wiring,
- Dimension: 37 x 25 x 12 mm
Water Level Sensor
TCRT5000 Module
- Model TCRT5000
- Chipset LM393
- Operating Voltage: 3.5-5 VDC
- Detection distance 1-25mm
- Operating Current: 15 mA
- Output Channel 0 or 1
- Focal Distance: 2.5 mm
- Designed with a reflected infrared sensor, indicator light.
- Built-in a potentiometer for sensitivity control.
- On-board signal output instructions, the output is a highly effective signal at the same time, the indicator lamp light output signal can be directly and single-chip microcomputer IO connection.
- Signal detection sensitivity can adjust.
- Reserve all the way more circuits (P3 voltage drawn)
- Output form: digital switch output (0 and 1)
- A fixed bolt hole, convenient installation.
- Dimension:32*11*20mm
- Weight:22gm
Soil Moisture Sensor
- Operating voltage: 3.3V to 5V Operating Current: 5mA.
- Dual output mode, analogue output and digital output
- Analogue output is more accurate
- Fixed bolt hole for easy installation
- Onboard power indicator (red) and digital switching output indicator (green)
- LM393 comparator chip
- Panel PCB Dimension: Approx.3cm x 1.5cm
- Soil Probe Dimension: Approx. 6cm x 3cm
- Cable Length: Approx.21cm
- Dimensions: 98 x 23 x 4.mm
- Weight (gm): 15
Rain Drop Sensor
- Operating voltage: 5V
- Provide both digital (DO) and analogue (AO) output
- Adjustable sensitivity with inbuilt potentiometer
- Output LED indicator
- Compatible with Arduino
- TTL Compatible
- Bolt holes for easy installation
- Voltage compactor IC: LM393
- Antioxidant material
- Treatment of nickel plating and surface, have fight oxidation, electrical conductivity, and life has more superior performance
- Comparator output signal clean waveform is good, driving ability, over 15mA
- Anti-oxidation, anti-conductivity, with long use time
- With bolt holes for easy installation
- PCB or module size: 30mm x 16mm
- Control board size: 54mm x 40mm
- Weight: approx. 8g
MQ8 Module
- Interface Type: Analog & Digital
- Working voltage: DC 5V
- Dual signal output (analogue output, and TTL level output)
- Detection Gas: Hydrogen
- Detection range: 100 to 10, 000 ppm
- The TTL output signal is low. (When low output signal light, and can be connected directly to the microcontroller)
- Onboard Power indication
- Good sensitivity to Combustible gas in a wide range
- Can be resistant to ethanol steam, LPG (petroleum), smoke interference.
- Simple drive circuit
- An indication of the signal output
- High sensitivity to hydrogen.
- The higher the voltage, the concentration of the analogue output voltage is higher.
- Four screw holes for easy positioning
- Has a long life and reliable stability.
- Fast response and recovery characteristics.
- Adjustable sensitivity
- Dimension: 32mm x 22m x 27mm
MQ7 Module
- Operating voltage: DC 5 V.
- Interface Type: Analog
- The analogue output voltage, the higher the concentration the higher the voltage.
- Detection Gas: carbon monoxide
- Detection range: 10 to 10000ppm
- Four screw holes for easy positioning.
- Has a long life and reliable stability.
- Fast response and recovery characteristics.
- Adjustable sensitivity
- Dimension: 32mm x 22m x 27mm
